Configuring Dashboard Display Properties

Data displayed on the Dashboard can be customized using the Display editor. Edit color options in the display editor to customize the appearance of data shown in the grid, contributing to a clearer initial understanding of the data at a glance. You can configure the display of options for FG Color (foreground color), BG Color (background color), and selected categories of Cell Value, or use the default values provided.

If the selected property does not apply for a specific Node, the dashboard will display [NS] (not supported) in the record cells.

On the Options pane, click Configure colors to access the Display Properties dialog box.

Set cell color and text values as you want them to be displayed in the grid. Configurable properties available in the display editor include the following.

Property	Options
Analyst overview	Optionally select foreground and background display colors, and cell value text (10 character limit), for each of the following types of records. Note: Available configuration options are dependent on your system's operational mode (FULL or REPOSITORY) and the selected data mode (Device or Station), as described below. FULL mode systems display the following options. Note: All listed options may not appear (e.g. exceptions, low data quality, PPAs) if configured otherwise in the administrative options. See Configuring System Options for more information. (Device) mode only: Unavailable - default cell value is Unavailable Collected - default cell value is Collected (Station) mode only: Open - default cell value is Open (Device/Station) modes: Missing - default cell value is Missing GA exceptions - default cell value is GA exceptions GA pending - default cell value is GA pending Exceptions - default cell value is Exceptions Low quality - default cell value is Low quality PPAs - default cell value is PPAs Closed - default cell value is Closed Edited - default cell value is Edited Prior to Installation - default cell value is PTI REPOSITORY mode systems display the following options. (Device) mode only: Unavailable - default cell value is Unavailable Exported - default cell value is Exported Collected - default cell value is Collected (Station) mode only: Open - default cell value is Open (Device/Station) modes: Missing - default cell value is Missing GA exceptions - default cell value is GA exceptions GA pending - default cell value is GA pending Prior to Installation - default cell value is PTI Note: Type desired text into the editor's Cell Value fields to customize the cell values to display for this property.
Collection details	Optionally select foreground and background display colors to display for each of the following collection detail statuses. Data missing Data unavailable All data collected Prior to Installation - default cell value is PTI (cell value text can be customized) See Data Collection Details in the CygNet Measurement Concepts section for more information about these values.
Collection status	Optionally select foreground and background display colors, and cell value text, to display for each of the following collection statuses. Good - default cell value is Good Good (U) - default cell value is Good (U) Failure - default cell value is Failed Not requested - default cell value is Not req Prior to Installation - default cell value is PTI Other - default cell value is Other See Data Collection Status in the CygNet Measurement Concepts section for more information about these values. Note: Type desired text into the editor's Cell Value fields to customize the cell values to display for this property.
Configuration poll	Optionally select foreground and background display colors, and cell value text, to display for each of the following configuration record statuses. Polled - default cell value is Yes Not polled - default cell value is No Prior to Installation - default cell value is PTI Note: Type desired text into the editor's Cell Value fields to customize the cell values to display for this property.
Data quality	Optionally select foreground and background display colors to display for each of the following data quality ranges. 0-24% 25-49% 50-69% 70-79% 80-89% 90-99% 100% Prior to Installation - default cell value is PTI (cell value text can be customized)
Edit state	Optionally select foreground and background display colors, and cell value text, to display for each of the following edit states. Open - default cell value is Open Closed - default cell value is Closed PPA - default cell value is PPA Mixed - default cell value is Mixed Prior to Installation - default cell value is PTI Note: Type desired text into the editor's Cell Value fields to customize the cell values to display for this property.
Linked exceptions	Optionally select foreground and background display colors to display for each of the following number of linked exception(s) ranges. 0 1-10 11-25 26-100 101-500 501-1000 1001-1500 1501+ Prior to Installation - default cell value is PTI (cell value text can be customized)
Open exceptions	Optionally select foreground and background display colors to display for each of the following number of open exception(s) ranges. 0 1-10 11-25 26-100 101-500 501-1000 1001-1500 1501+ Prior to Installation - default cell value is PTI (cell value text can be customized)
Raw data export	Optionally select foreground and background display colors, and cell value text, to display for each of the following raw data export statuses. All exported - default cell value is All Some exported - default cell value is Some None exported - default cell value is None Prior to Installation - default cell value is PTI Note: Type desired text into the editor's Cell Value fields to customize the cell values to display for this property.

Property

Options

Analyst overview

Optionally select foreground and background display colors, and cell value text (10 character limit), for each of the following types of records.

Note: Available configuration options are dependent on your system's operational mode (FULL or REPOSITORY) and the selected data mode (Device or Station), as described below.

FULL mode systems display the following options.

Note: All listed options may not appear (e.g. exceptions, low data quality, PPAs) if configured otherwise in the administrative options. See Configuring System Options for more information.

(Device) mode only:

Unavailable - default cell value is Unavailable
Collected - default cell value is Collected

(Station) mode only:

Open - default cell value is Open

(Device/Station) modes:

Missing - default cell value is Missing
GA exceptions - default cell value is GA exceptions
GA pending - default cell value is GA pending
Exceptions - default cell value is Exceptions
Low quality - default cell value is Low quality
PPAs - default cell value is PPAs
Closed - default cell value is Closed
Edited - default cell value is Edited
Prior to Installation - default cell value is PTI

REPOSITORY mode systems display the following options.

(Device) mode only:

Unavailable - default cell value is Unavailable
Exported - default cell value is Exported
Collected - default cell value is Collected

(Station) mode only:

Open - default cell value is Open

(Device/Station) modes:

Missing - default cell value is Missing
GA exceptions - default cell value is GA exceptions
GA pending - default cell value is GA pending
Prior to Installation - default cell value is PTI

Note: Type desired text into the editor's Cell Value fields to customize the cell values to display for this property.

Collection details

Optionally select foreground and background display colors to display for each of the following collection detail statuses.

Data missing
Data unavailable
All data collected
Prior to Installation - default cell value is PTI (cell value text can be customized)

See Data Collection Details in the CygNet Measurement Concepts section for more information about these values.

Collection status

Optionally select foreground and background display colors, and cell value text, to display for each of the following collection statuses.

Good - default cell value is Good
Good (U) - default cell value is Good (U)
Failure - default cell value is Failed
Not requested - default cell value is Not req
Prior to Installation - default cell value is PTI
Other - default cell value is Other

See Data Collection Status in the CygNet Measurement Concepts section for more information about these values.

Note: Type desired text into the editor's Cell Value fields to customize the cell values to display for this property.

Configuration poll

Optionally select foreground and background display colors, and cell value text, to display for each of the following configuration record statuses.

Polled - default cell value is Yes
Not polled - default cell value is No
Prior to Installation - default cell value is PTI

Note: Type desired text into the editor's Cell Value fields to customize the cell values to display for this property.

Data quality

Optionally select foreground and background display colors to display for each of the following data quality ranges.

0-24%
25-49%
50-69%
70-79%
80-89%
90-99%
100%
Prior to Installation - default cell value is PTI (cell value text can be customized)

Edit state

Optionally select foreground and background display colors, and cell value text, to display for each of the following edit states.

Open - default cell value is Open
Closed - default cell value is Closed
PPA - default cell value is PPA
Mixed - default cell value is Mixed
Prior to Installation - default cell value is PTI

Note: Type desired text into the editor's Cell Value fields to customize the cell values to display for this property.

Linked exceptions

Optionally select foreground and background display colors to display for each of the following number of linked exception(s) ranges.

0
1-10
11-25
26-100
101-500
501-1000
1001-1500
1501+
Prior to Installation - default cell value is PTI (cell value text can be customized)

Open exceptions

Optionally select foreground and background display colors to display for each of the following number of open exception(s) ranges.

0
1-10
11-25
26-100
101-500
501-1000
1001-1500
1501+
Prior to Installation - default cell value is PTI (cell value text can be customized)

Raw data export

Optionally select foreground and background display colors, and cell value text, to display for each of the following raw data export statuses.

All exported - default cell value is All
Some exported - default cell value is Some
None exported - default cell value is None
Prior to Installation - default cell value is PTI

Note: Type desired text into the editor's Cell Value fields to customize the cell values to display for this property.

Configuring Display Properties

Configure the way you want various properties to appear in your Dashboard control. The settings will be saved to your workspace when you save the control.

To Configure Dashboard Display Properties

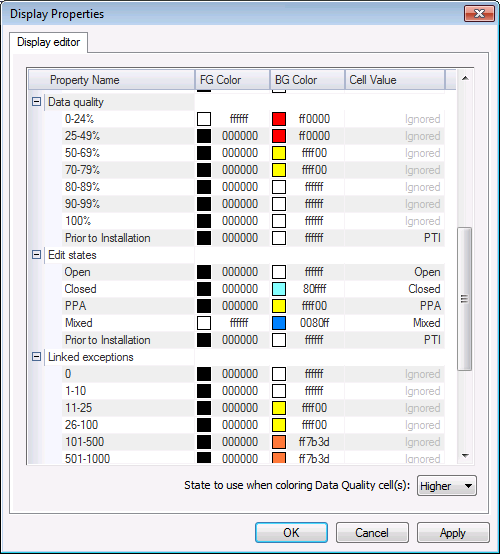

In the Options pane, click Configure display to access the Display Properties dialog box.

In the Display editor, click on a color field cell to edit FG Color or BG Color. See Configuring Color for more information.

Edit applicable text value fields, as desired. Text in some cell value fields (analyst overview, collection status, configuration poll, edit states, and raw data export) can be customized. Click to select the Cell Value field, type in the cell value display desired, and then click OK to save the setting.

Select which State to use when coloring Data Quality cell(s) from the drop-down menu. Options are for the color of the data quality cell, to reflect either the Lower or the Higher available value. The Lower value is shown by default.

Click OK to save the settings.
