Viewing and Editing SCADA Polling Facility Details

Use the View polling FAC option to view and edit the SCADA polling facility details associated with a selected device (or station meter) Node. You can view the SCADA polling facility ID, view or edit facility attributes, or access audit history for the polling facility linked to the selected device Node. This information can be helpful for editing attributes, auditing information, or troubleshooting purposes.

Node properties can be viewed or edited by users with the required authorization level.

Viewing and Editing an FMS Node's SCADA Polling Facility Details

Use the following method to access the facility Properties dialog box, to view or edit details for the SCADA polling facility linked to the selected FMS device Node.

Viewing SCADA Polling Facility Details

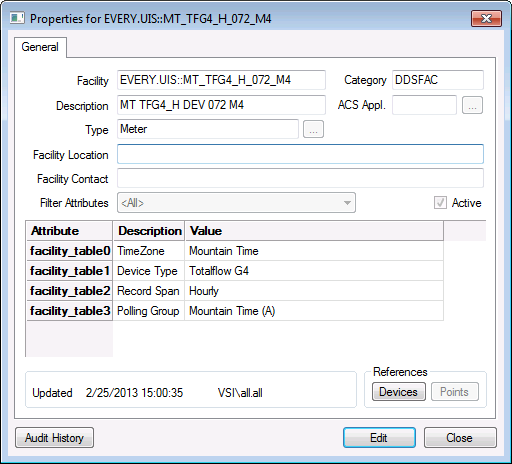

The Properties dialog box showing the polling facility details associated with the selected device (or station meter) Node can be accessed through FMS Explorer.

To View an FMS Node's Polling Facility Details from FMS Explorer

1. Open FMS Explorer.
2. On any Node chooser (stand-alone or embedded), right-click on a device (or station meter) Node name to access the context menu.
3. Click View polling FAC to access the Properties dialog box for the selected Node.



The Properties dialog box showing the SCADA polling facility details can also be accessed through the Flow Measurement Service in CygNet Explorer. See Viewing and Editing SCADA Properties in CygNet Measurement for more information.

Editing FMS Polling Facility Details

Once you have accessed FMS polling facility details for viewing, you also have the option to perform edits.

You must have proper security authorization to perform edits. See FMS Security for information about configuring security access.

See Facility Attributes for more information about facility properties.
