The Gas Meter Properties dialog box displays properties for existing FMS Gas Meter Nodes or Station Meter Nodes . (A Station Meter Node is a Gas Meter Node set to also function as a station.) Use this feature to view and edit Gas Meter Node properties. This dialog box corresponds to all of the following.
The following subsections list and describe the fields found on the Gas Meter Properties pages.
When any edits are made to Node properties, access the Save FMS Record dialog box to save a record of the change.
See Creating Gas Meter Nodes for more information about creating new Nodes in your system.

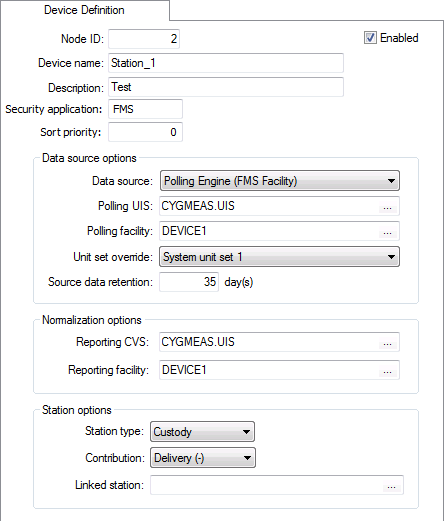

| Property | Description |
|---|---|
|
Node ID |
The system-assigned Node ID for the meter. When creating new meters this will indicate NEW. |
|
Enabled |
The Enabled check box indicates whether the meter is enabled or not. An unchecked box does not mean the meter is deleted; all meter settings are saved until you choose to enable the meter. Default value is Enabled. |
|
Device name |
Type in the name for the meter Node. Valid characters (maximum of 20) are as follows. A-Z, a-z, 0-9, . (period), #, $, &, (, ), +, -, \, /, :, <, >, =, @, [, ], ^, {, }, _ (underscore), !, ~ (tilde). Spaces are acceptable, when they are not leading or trailing. This parameter is required. |
|
Description |
Type in a free-form Description for the meter. This parameter is optional. |
|
Security application |
Enter the security application used to validate users of the Node. Use this setting to control user access, for example, to only give certain users access to particular Gas Meter Nodes. See FMS Security for more information. This parameter is optional. |
|
Sort priority |
Type in the Sort priority number to assign to the meter Node. The priority number assigned places it within a manually sortable list. Higher numbers place a Node higher up on a list. Default value is 0. This parameter is optional. |
| Data source options | |
|
Data source |
Select the applicable Data source for the device. Options are as follows.
|
|
Polling UIS |
If Polling Engine is your selected Data Source, click … to select the polling UIS for the meter. |
|
Polling facility |
If Polling Engine is your selected Data Source, click … to access the Select Facility dialog box and select the polling facility for the meter. Note: The Select Facility list provided contains all linked facilities that belong to the FMS Configuration or FMS Legacy Configuration data group corresponding to your data source selection. |
|
Note: The Unit set override parameter is optional. It is provided to give you the ability to override units in cases where GMR data coming into FMS (via the FMS Toolbox) may contain values in units other than the assumed GMR units. In such a case, use this parameter to define the unit set to use instead, and the FMS system will apply the specified unit set to the incoming GMR data See GMR Data Items Units for more information. If used, select a unit set for the system to apply to GMR data, from the options in the drop-down menu. Options in the drop-down menu are populated by the enabled read-only unit sets configured in your system. You may have to create the applicable unit set first. See Configuring Unit Set Definitions for more information. |
|
|
Source data retention |
Enter the maximum time, in number of days, that source data is retained on your flow computer. Retention on most flow computers is 35 days. Default value is 35 days. |
| Normalization options | |
|
Reporting CVS |
Click … to access the Select CVS dialog box and select the Current Value Service reporting data for the gas meter. Note: This CVS does not need to contain the raw data collected by the Data Source. |
|
Reporting facility |
Click … to access the Select a Facility dialog box and select the Facility reporting data for the gas meter. To filter facilities by up to six attributes, click Advanced Filter. Note: This facility does not have to be a device facility. It can be used to hold data pushed back from FMS to CygNet SCADA. |
|
Meter is a station |
Note: This property appears at Node creation only, and determines whether a new Node will be a "gas meter" Node or a "station meter" Node. For station meter Nodes, station options (below) must also be configured. Click to select/clear the check box to indicate if the FMS meter also represents a station. If the Node is configured as a station meter (a meter also functioning as a station), you will be able to access and configure Station options for the Node. Default value is selected. |
| Station options (enabled/appear for Station Meter Nodes only) | |
|
Station type |
Click to select the station type for the gas meter from the drop-down menu. Station type options are as follows.
|
|
Contribution |
Select the applicable contribution from the drop-down menu to indicate how the Node contributes to the system. Options are as follows.
Note: Edits to this property can only be applied for the entire span of the Node. An error message will appear if you try to edit this value for a partial span. |
|
Linked station |
Click … to access the Select Station dialog box to select from the list of available stations. Select a station to which to link for the purpose of validating data. Click OK. Example A typical use is to validate that a custody station and check station are within a known tolerance. |

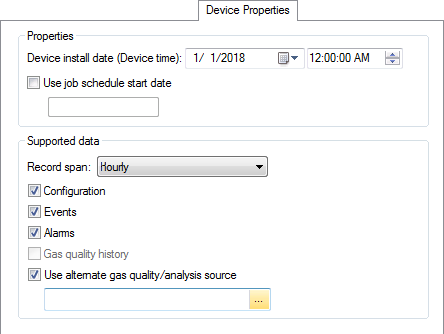

| Property | Description |
|---|---|
| Properties | |
|
Device install date (Device time) |
Select the date and time of the installation of the meter using the date and time selectors. When no user-entered value is provided, the default install date value is 36 days prior to Node creation, at 12:00:00 AM. Notes: The Request Missing Data or Request New Data commands will not request data prior to the device install date. Edits to this property can only be applied for the entire span of the Node. An error message will appear if you try to edit this value for a partial span. |
|
Use job schedule start date |
Note: This parameter defines a date used by the Schedule Jobs command for CygNet Dispatch. For more information about the CygNet Dispatch product, contact your Account Manager or CygNet Sales. When using CygNet Dispatch, optionally set this value to define the first possible start date that can be used for job occurrences associated with this Node, when automatically scheduling jobs via the Schedule Jobs command. If used, click the check box to access the date selector, and specify the earliest date from which CygNet Dispatch jobs for this Node can be scheduled. When no user-entered value is provided, the default value is the Device install date. See Schedule Jobs for more information. |
| Supported data
Note: This note does not apply to Use alternate gas quality/analysis source. Each of the following properties (except as noted) is read-only once the corresponding data type has been collected for the Node. The properties can only be edited if the device has not yet received the corresponding data, since Node properties must be consistent across their time continuum. Trying to edit a Supported data property, for a device which has already received that type of data, will produce a service error. |
|
|
Record span |
Click to select the record span. If the Data Source is a polling engine, this requires a properly configured device in the DDS with at least one corresponding data group of the same span: FMS Legacy History or FMS History (gas metering). Record span options are as follows.
This property is required. |
|
Configuration |
If the device supports configuration data, click to select the check box. If the Data source is a polling engine, this requires a properly configured device in the DDS with at least one corresponding data group: FMS Legacy Configuration or FMS Configuration. This property is optional. |
|
Events |
If the device supports event data, click to select the check box. If the Data source is a polling engine, this requires a properly configured device in the DDS with at least one corresponding data group: FMS Legacy Events or FMS Events. This property is optional. |
|
Alarms |
If the device supports alarm data, click to select the check box. If the Data source is a polling engine, this requires a properly configured device in the DDS with at least one corresponding data group: FMS Legacy Configuration (alarms) or FMS Alarms. This property is optional. |
|
Gas quality history |
Selection of this property is mutually exclusive with selection of "Use alternate gas quality/analysis source" below If the device supports the collection of "live" gas quality history, click to select the check box. If the Data source is a polling engine, this requires a properly configured device in the DDS with at least one FMS Hourly PQ History data group. Note: Only select this check box for devices that are properly configured for this data group type, or you will not be able to view your device data in all FMS controls. If support for "live" gas quality history is not desired, clear the check box. If editing to remove support, the effective begin date for the record change must be after the date of the last periodic gas quality record received. |
|
Use alternate gas quality/analysis source |
Selection of this property is mutually exclusive with selection of "Gas quality history" above To use a gas quality or gas analysis source Node, rather than what is configured on the corresponding EFM device for this Node (for example, "live" gas quality history), click to select the check box, and then use the browser to access the Select Node dialog box to specify the Node to use instead. See Selecting an Alternate Gas Quality/Analysis Source Node for more information. Note: Edits to this property can only be applied for the entire span of the Node. An error message will appear if you try to edit the value for a partial span. |
See Date and Time and CygNetTimeZones.xml File for more information about these properties.

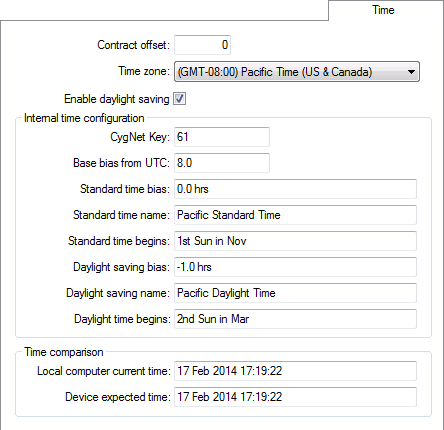

| Property | Description |
|---|---|
|
Contract offset |
Type the number (in hours) of the contract hour offset. This number is synonymous with the Contract time. It is an offset (in hours) from the Device time, describing the hour at which the contract day begins. |
|
Time zone |
Click to select the desired time zone from the drop-down menu. Note: Edits to this property can only be applied for the entire span of the Node. An error message will appear if you try to edit this value for a partial span. |
|
Enable daylight saving |
Click to enable an adjustment for daylight saving time. Notes:
|
| Internal time configuration | |
|
CygNet Key |
An internal CygNet identifier Each time zone is assigned a unique numerical key in the CygNetTimeZones.xml file, located in the CygNet\Services\ARS folder on your host server. This property is read-only. Note: This value requires a properly installed CygNetTimeZones.xml file. See CygNetTimeZones.xml File for more information. |
|
Base bias from UTC |
The offset in hours between the device's expected time and Coordinated Universal Time (UTC) (also known as Greenwich Mean Time or GMT) This property is read-only. |
|
Standard time bias |
The offset in hours from the base bias to account for standard time in the selected time zone This property is read-only. |
|
Standard time name |
The complete standard time zone name, for example Eastern Standard Time This property is read-only. |
|
Standard time begins |
The date that standard time begins, for example 1st Sun in Nov. This property is read-only. |
|
Daylight saving bias |
The offset in hours between standard time and daylight saving time This property is read-only. |
|
Daylight saving name |
The complete daylight saving time zone name. For example, Pacific Daylight Time This property is read-only. |
|
Daylight time begins |
The date that daylight saving time begins, for example 2nd Sunday in March This property is read-only. |
| Time comparison | |
|
Local computer current time |
The time of the client computer Do not alter the client computer's time; it may cause undesirable changes in your CygNet system. This property is read-only. |
|
Device expected time |
The time expected for the remote device This property is read-only. |

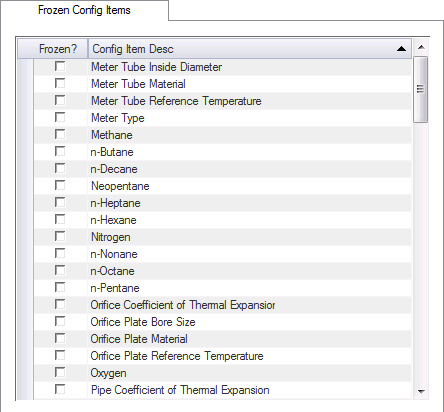

| Property | Description |
|---|---|
|
Frozen? |
Each check box represents a configuration item. If the check box is selected, its value is "frozen" so new configuration records won’t update the system. The raw data is still stored, however. Click the check box adjacent to any configuration item(s) you choose to select/clear whether or not to "freeze" its value. |
|
Config Item Desc |
Lists the descriptions of the configuration items for the selected meter. |

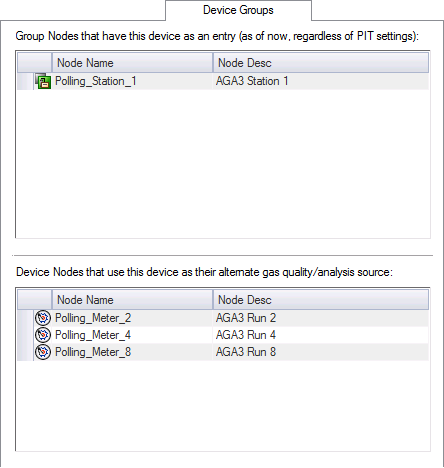

The gas meter's group membership is displayed as of Now, regardless of Point in Time settings.
| Property | Description |
|---|---|
| Group Nodes | |
|
[Icon] |
Shows the type of each group Node of which this device is a member. |
|
Node Name |
Lists the name of each group Node of which this device is a member. |
|
Node Desc |
Lists the description (if used) of each group Node of which this device is a member. |
| Device Nodes | |
|
[Icon] |
Shows the type of each device Node that uses this device as its alternate gas quality/analysis source. |
|
Node Name |
Lists the name of each device Node that uses this device as its alternate gas quality/analysis source. |
|
Node Desc |
Lists the description (if used) of each device Node that uses this device as its alternate gas quality/analysis source. |

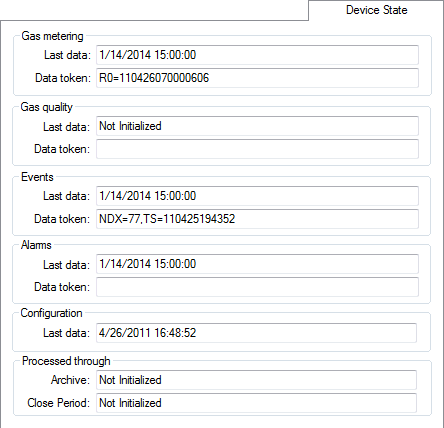

The gas meter's latest Node state information is displayed by device data type.
| Property | Description |
|---|---|
|
Gas metering |
Last data: Date of last Gas Metering data received. Data token: Displays the last relevant data token received. |
|
Gas quality |
Last data: Date of last Gas Quality data received. Data token: Displays the last relevant data token received. |
|
Events |
Last data: Date of last Events data received. Data token: Displays the last relevant data token received. |
|
Alarms |
Last data: Date of last Alarms data received. Data token: Displays the last relevant data token received. |
|
Configuration |
Last data: Date of last configuration data received. |
|
Processed through |
Archive: Date of last data received. Close Period: Displays the last Close Period data received. |
Each page of the Gas Meter Properties dialog box contains a historization navigator. This feature is provided solely for diagnostic purposes. Use the historization navigator to access sequential historized records for the same Node, where applicable.
The following fields are displayed in the historization navigator.
| Field | Description |
|---|---|
|
<< |
Click << to navigate to the previous historized record, if applicable. |
|
[Begin date] |
Displays the effective begin date, in Contract time (C), of the historized record currently selected. |
|
[End date] |
Displays the effective end date, in Comntract time (C), of the historized record currently selected. |
|
>> |
Click >> to navigate to the next historized record, if applicable. |
|
Record details |
Use the << and >> navigation buttons to select a historized record date span, in Contract time (C), for which you want to view record details. Next, click Record details to view details of the record such as who made the change, the date and time it was made, and optionally the audit category and/or any comments entered regarding the change. See Viewing Record Details for more information. |
|
Audit history |
Click Audit history to view detailed history of audit trail value changes for the Node in its entirety. See Viewing Audit History for more information. |
When editing any Node properties, you'll be asked to save your changes via the Save FMS Record dialog box. Configure the date and audit information requested to historize the changes in your system.
| Property | Description |
|---|---|
|
Change begin |
Set the effective date and time for the record change to begin. Options are as follows.
|
|
Change end |
Set the effective date and time for the record change to end. Options are as follows.
|
|
Audit category |
Select an appropriate Audit category from the drop-down menu. The audit category type for this kind of edit is Configuration Change. Audit categories are configured on the Admin menu. See Configuring Audit Categories for more information. |
|
Comments |
Type Comments regarding creation or modification of the rule or Node in the text box. Although comments are optional, they become part of the record and can be helpful when auditing or reviewing records. |
|
|
|
