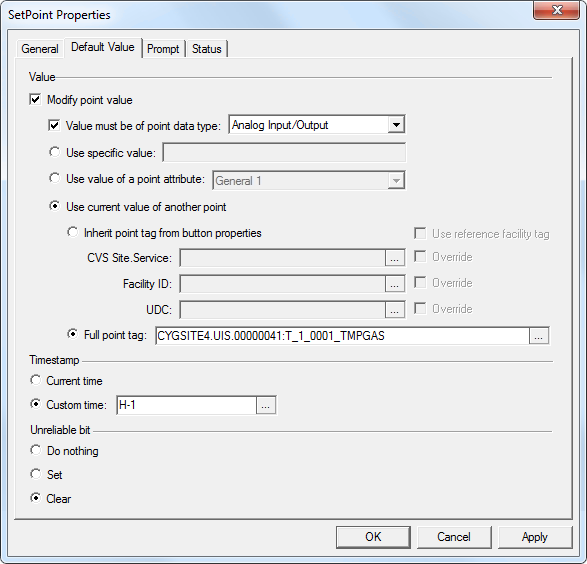

Indicates that the value for the target point will be modified. If unchecked the prompt will indicate that the point value cannot be set.

Click to limit the default value to one of the following point data types:

• Analog Input/Output
• Digital Input/Output
• Enumeration Input/Output
• String Input/Output

Indicate the default value to be sent for the SetPoint operation. Select from one of the following three options:

Click to use a static value and then specify the value to be written. This is the default option for the button.

Click to use a value of a point attribute from the target point and then select the attribute from the drop-down menu. Options include:

• General 1-3 (general data fields) — see PNT Editor - Application Page.
• Indexed 1-3 (indexed fields) — see PNT Editor - Application Page.
• Initial Value — see PNT Editor - General Page.

Click to use a current value of another point, and then specify the point tag. The alternate point can be very explicitly defined allowing a templated point tag, inheriting some or all of the point identifier properties from the button properties or from a reference facility. Alternatively a fully qualified point tag may be specified.

• Inherit point tag from button properties:

Click to inherit the point tag elements from the values configured for the button object. Optionally you can override to inherit some or all of the point tag elements, or choose to use a reference facility. An inherited point tag is the default option for the point.

• Use reference facility tag — Click to use the Facility ID or facility tag specified in the [ReferenceFacility] property. See Configuring a Reference Facility for more information. Optionally you can override the UDC and further customize the point's UDC.

• CVS Site.Service — Click to override and browse to further specify the point's Current Value Site.Service using the Select Service dialog box.
• Facility ID — Click to override and browse to further specify the point's Facility ID using the Select a Facility dialog box.
• UDC — Click to override and browse to further specify the point's UDC using the Select a Uniform Data Code dialog box.

• Full point tag — Click ... to open the Select Point dialog box, then select the CVS Site.Service and point to use for the target point.

Specify the timestamp to be used when setting a value for a target point. Options include:

• Current time — use the current time of the host computer. This is the default option. Note that if a SetPoint timeout is configured, the SetPoint operation will use the time of the client machine.
• Custom time — specify a custom time. Click … to customize the timestamp with the Date and Time selector. See Selecting Date and Time for more information.

Specify how you want to handle the unreliable status bit when setting the value for a target point. Options include:

• Do nothing — preserve the setting of the unreliable status bit (set or unset). This is the default option.
• Set — set the unreliable status bit to true.
• Clear — remove the unreliable status bit.
