Use the Device page to view, select, and modify general device settings for a remote device. These settings are the minimum required for remote device functionality. The Device page of a remote device editor typically contains settings unique to its field device type(s) or to the EIE itself.

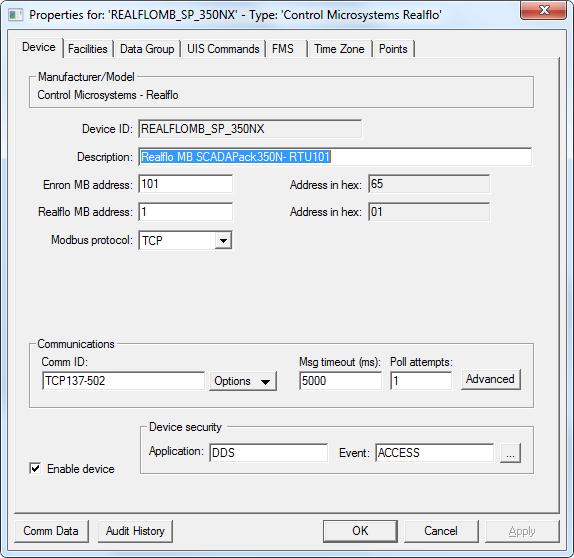

Click the following image to see an example Device page:
For more information, see Remote Device Editors.
The following table lists and describes specialized Device page properties for this device. See Device Page for common properties.
| Property | Description | ||||
|---|---|---|---|---|---|
|
Device ID |
The unique identifier of an instance for this device. This free-form name must be unique in the DDS and the FAC. That is, it must be a name not used by any other communication device, import/export device, remote device, or facility. Valid characters are A-Z, 0-9, dash (-), underscore (_), and tilde (~). No spaces are allowed. 20 character maximum. Note: Tilde (~) is a valid character for both devices and facilities, but its use is not recommended. |
||||
|
Description |
Displays a user-defined description of the remote device. A free-form description of the device. 32 character maximum. |
||||
|
Enables you to use an Enron MB address setting as the address by which to access Enron Modbus registers for a data group. CygNet’s Enron Modbus implementation supports an alternate address concept; thus the supportAltAddr attribute can be defined in the device template file to identify if the Realflo device supports an alternate address. The Enron MB address is used by default by data groups. It can be overridden by defining the useAltAddr attribute for a data group in the affected device template file. In this context, the alternate address is the Realflo MB address setting. Overriding the default address means that registers defined for a data group are those of the Realflo Modbus register map, not the Enron Modbus map. Note: The ModbusRealFlo EIE allows data access in both the Enron registers and RealFlo registers, as long as the Realflo registers support standard Modbus protocol (that is, they don’t require a custom function code). Each set of registers has its own address space. The following table shows sample addresses and register numbers:
Note: Because the driver is an Enron Modbus driver, the Enron MB address is considered the primary address and the Realflo MB address is considered the "alternate" address. |
|||||
|
Address in hex |
The hex equivalent of the address. Displays the user-specified decimal RTU address as a hexadecimal value, which is the format in which the value is communicated to the field device. |
||||
|
Realflo MB address |
Enables you to use a Realflo MB address setting as the address by which to access Realflo Modbus registers for a data group. CygNet’s Enron Modbus implementation supports an alternate address concept; thus the supportAltAddr attribute can be defined in the device template file to identify if the Realflo device supports an alternate address. The Enron Modbus address is used by default by data groups; it can be overridden by defining the useAltAddr attribute for a data group in the affected device template file. In this context, the alternate address is the Realflo MB address setting. Overriding the default address means that registers defined for a data group are those of the Realflo Modbus register map, not the Enron Modbus map. Note: Because the driver is an Enron Modbus driver, the Enron MB address is considered the primary address and the Realflo MB address is considered the "alternate" address. |
||||
|
Address in hex |
The hex equivalent of the address. Displays the user-specified decimal RTU address as a hexadecimal value, which is the format in which the value is communicated to the field device. |
||||
|
Modbus protocol |
Select the Modbus communication protocol (RTU, TCP, or ASCII) you want to use from this drop-down menu. Your choice depends on your communications hardware. |
||||
| Communications | |||||
|
Comm ID |
The name of the communication device this remote device uses. Click the Options button to select from the choices in the drop-down menu. See Communication Devices. |
||||
|
Options |
This button provides several communications-oriented options. Options are as follows:
|
||||
|
Msg timeout (ms) |
Displays the time in milliseconds a remote device waits for a valid response from an associated field device before timing out. This setting is not the same as similar settings on the currently active communication device and device failover settings. But these settings work in conjunction with one another. |
||||
|
Poll attempts |
The number of times a remote device attempts to poll an associated field device until a valid response is received within the message timeout limit. If a poll is successful, no more poll attempts are made. If a poll is unsuccessful, the remote device continues to attempt polls until a valid response is received or until the Poll attempts setting is reached, whichever comes first. |
||||
|
Advanced |
Click to access advanced communication device failover settings. |
||||
|
Enable device |
Check to enable or disable the device. The default setting is disabled. The device will automatically disable if an invalid configuration is detected. The device can be re-enabled after the invalid configuration is fixed. |
||||
| Device security | |||||
|
Application |
Defines the ACS security application name used to validate the users of this device. See Applications, Events, Permissions. |
||||
|
Event |
Defines the ACS security event used to validate users of this device. Click … to select the security event. See Applications, Events, Permissions. |
||||
|
Comm Data |
Enables you to open a modeless Communications Data Viewer dialog box. |
||||
|
Audit History |
Enables you to view the audit trail for the device. |
||||
|
|
|
