CxFmsHistoryGridCtrl Example

Use the CxFmsHistoryGridCtrl object to display and manipulate an ActiveX CygNet FMS History Grid Control in a CygNet Studio screen environment.

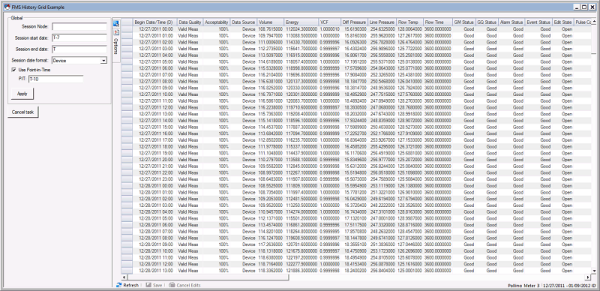

CygNet FMS History Graph Control

To see an example FMS History Grid control implemented in a pre-designed screen, open the FMS History Grid Ctrl.csf file in the CygNet\Clients\CStudio\Screens\Examples folder.

CygNet Studio Screen Script: FMS History Grid Ctrl.csf

Sub btnApply_EventClick()

Dim This : Set This = btnApply

FmsHistoryGrid.SessionNodeTag = editSessionNode.Text

FmsHistoryGrid.SessionBeginDate = editStartDate.Text

FmsHistoryGrid.SessionEndDate = editEndDate.Text

FmsHistoryGrid.SessionDateFormat = cboDateFormat.Selection

FmsHistoryGrid.PITDateTime = editPIT.Text

FmsHistoryGrid.UsePIT = checkUsePIT.Check

FmsHistoryGrid.Apply True

End Sub

Sub btnCancel_EventClick()

Dim This : Set This = btnCancel

FmsHistoryGrid.Cancel

End Sub

Sub cboDateFormat_EventChange()

Dim This : Set This = cboDateFormat

FmsHistoryGrid.SessionDateFormat = this.Selection

End Sub

Sub checkUsePIT_EventChange()

Dim This : Set This = checkUsePIT

FmsHistoryGrid.UsePIT = this.Check

editPIT.Enable this.Check

End Sub

Sub TheView_EventInitialize()

Dim This : Set This = TheView

editSessionNode.Text = FmsHistoryGrid.SessionNodeTag

editStartDate.Text = FmsHistoryGrid.SessionBeginDate

editEndDate.Text = FmsHistoryGrid.SessionEndDate

cboDateFormat.AddString "Device"

cboDateFormat.AddString "Contract"

cboDateFormat.AddString "Local"

cboDateFormat.Selection = FmsHistoryGrid.SessionDateFormat

checkUsePIT.Check = FmsHistoryGrid.UsePIT

editPIT.Text = FmsHistoryGrid.PITDateTime

editPIT.Enable = FmsHistoryGrid.UsePIT

End Sub
