CxFmsNodeChooserCtrl Example

Use the CxFmsNodeChooserCtrl object to display and manipulate an ActiveX CygNet FMS Node Chooser Control in a CygNet Studio screen environment.

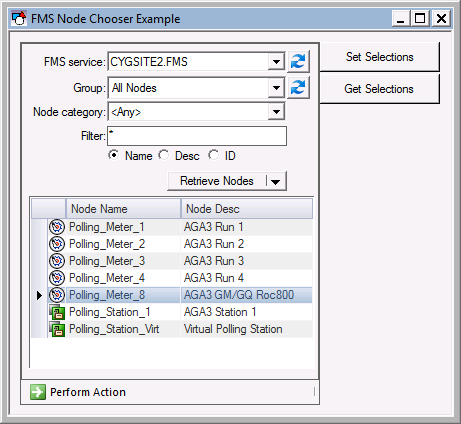

CygNet FMS Node Chooser Control

To see an example FMS Node Chooser control implemented in a pre-designed screen, open the FMS Node Chooser Ctrl.csf file in the CygNet\Clients\CStudio\Screens\Examples folder.

CygNet Studio Screen Script: FMS Node Chooser Ctrl.csf

Sub btnGetSelections_EventClick()

Dim This : Set This = btnGetSelections

Dim arySelected

arySelected = FmsNodeChooser.GetNodeSelection()

Dim i, strMsg

For i = 0 To UBound(arySelected)

strMsg = strMsg & arySelected(i) & Vbcr

MsgBox strMsg

End Sub

Sub btnSetSelections_EventClick()

Dim This : Set This = btnSetSelections

Dim aryNodes

Redim aryNodes(1)

aryNodes(0) = "2540"

aryNodes(1) = "2541"

FmsNodeChooser.SetNodeSelection aryNodes

End Sub

Sub FmsNodeChooser_EventUpdated()

Dim This : Set This = FmsNodeChooser

Dim arySelected

arySelected = FmsNodeChooser.GetNodeSelection()

If UBound(arySelected) > 0 Then

MsgBox "Can only select one Node as the Session Node"

Elseif UBound(arySelected) = 0 Then

MsgBox arySelected(0) & " set as the Session Node"

'add script here to set Session Node

Else

MsgBox "You must select a Node first"

End If

End Sub
