HyperPoint Scripting Examples

Summation
Deviation

Summation

The following procedure explains how to create a summation point. Four points are created: two addend points, a point to store the sum, and a HyperPoint to compute the sum.

Creating a Summation Point

Open CygNet Explorer and navigate to the Point Service.
Right-click in the service pane and click New to create a new point.
Choose your site and UIS service, and enter "POINT1" for the Long Point ID.
Click OK to save the new point.
Repeat steps 2-4 two more times, naming the new points "POINT2" and "SUM."
Right-click again in the service pane and click New to make one more point.
Fill in the site name and HSS service, and enter "SUM_CALC" for the Long Point ID. Click the HyperPoint check box to indicate that it is a HyperPoint. Select "String Input" for the Point Type.
Click the HyperPoint page, which should now be visible. Click the Edit button to open the script editor.
Select SUM_CALC from the Object drop-down menu to view the events in the Event drop-down menu. Enter the following script, noting the use of the OnInitializeEx and OnPointChange events. Be sure to replace occurrences of CYGDEMO with your own site name.

Sub SUM_CALC_OnInitializeEx(This)

SUM_CALC.Value = "Initialized"

'Identify the set of points to monitor

Points.AddPoint "CYGDEMO.UIS:POINT1", This

Points.AddPoint "CYGDEMO.UIS:POINT2", This

End Sub

Sub SUM_CALC_OnPointChange(This,Tag)

This.Value = "Updated"

'Get Point objects

Set P1 = Points.Point("CYGDEMO.UIS:POINT1")

Set P2 = Points.Point("CYGDEMO.UIS:POINT2")

'Check validity of values

If Not (IsNumeric(P1.Value) And IsNumeric(P2.Value)) Then

This.Value = "Non-numeric vals"

Exit Sub

End If

'Calculate sum and save to point, SUM

sum = CDbl(P1.Value) + CDbl(P2.Value)

SetPoint "CYGDEMO.UIS:SUM", sum

End Sub

On the General page , check Activate Script. Click OK to close the dialog box.
Navigate to the Universal Interface Service, Current Values page.
Double-click POINT1 to open its point properties.
Click Edit Value and enter a new value of 5. Click OK, then click Close to return to the service pane.
Repeat steps 12-13 for POINT2, entering a value of 10.

The value of SUM should be 15 as expected. This value can be verified using CygNet Explorer.

Deviation

This example demonstrates the use of system HyperPoints to calculate a deviation. The HyperPoint, SYSTEM_DELTA_CODE, is created to compute the deviation of a point’s values over the last hour. MYPOINT_DELTA_CALC is the HyperPoint associated with MYPOINT (the point whose value will be calculated). This HyperPoint can be used as a template for other points’ delta calculations, as well. MYPOINT_DELTA_CALC has added the SYSTEM_DELTA_TRIGGER point to its Points object, which updates every minute. This in turn triggers the MYPOINT_DELTA_CALC OnTimer event to run every minute, which calls the SYSTEM_DELTA_CODE Calculate method. The Calculate method stores the actual delta value back to the MYPOINT_DELTA UIS point. Calculation is performed using the VHS Rollup Iterator object.

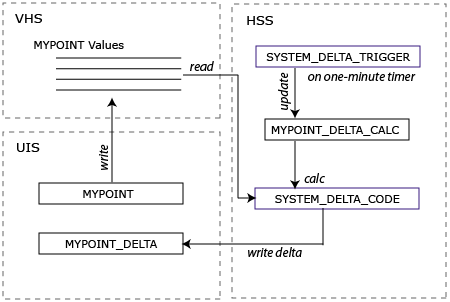

The following diagram shows the flow of data for these points and their respective services. This setup is typical of system HyperPoints. Code is provided below for the HSS points.

HyperPoint Data Flow

SYSTEM_DELTA_CODE

This HyperPoint Script includes a global method, Compute, which accepts as parameters the HyperPoint object of the calculation point and the target point for the calculation.

'(Declarations)

'Global VHS objects for rollups

Dim g_vhsRollupIterator

Dim g_vhsHistEntry

'End of (Declarations)

Sub SYSTEM_DELTA_CODE_Compute(hPoint, strTargetTag)

On Error Resume Next

Dim strSourceTag, strVhs

Dim dateFirst, dateLast

Dim dDelta

Err.Clear

'Create VHS objects if not already created

If Not IsObject(g_vhsRollupIterator) Then

Set g_vhsRollupIterator = CreateObject("CxVhsLib.RollupIterator")

End If

If Not IsObject(g_vhsHistEntry) Then

Set g_vhsHistEntry = CreateObject("CxVhsLib.HistoryEntryEx")

End If

'Check that objects were successfully created

If Err.Number <> 0 Then

hPoint.Value = "Failed iter init"

Exit Sub

End If

'Get the VHS Site.Service and the source tag string

strVhs = hPoint.GetAttribute("General1")

strSourceTag = hPoint.GetAttribute("General2")

'Set the date range to the previous hour

dateLast = Now

dateFirst = DateAdd("h", -1, dateLast)

'Set up iterator (rollupCalcDelta=5, rollupUnitHours=2)

If (g_vhsRollupIterator.Initialize(strVhs, strSourceTag, dateFirst,_

dateLast, 5, 2, 1, 0) = False) Then

hPoint.Value = "Failed iter init"

Exit Sub

End If

g_vhsRollupIterator.MoveFirst()

dDelta = 0

'Loop to the last returned value in the iterator

While (g_vhsRollupIterator.GetForward(g_vhsHistEntry) <> False)

If IsNumeric(g_vhsHistEntry.Value) Then

dDelta = CDbl(g_vhsHistEntry.Value)

End If

Wend

'Set the target point to the delta value and update point status

SetPoint strTargetTag, dDelta, Now, 0

hPoint.Value = "Succeeded"

End Sub

MYPOINT_DELTA_CALC

This is the calculation point in the HSS that is associated with MYPOINT.

On the Application page of the point’s properties, the following fields must be defined:

General Data Field 1: the VHS Site.Service (i.e. FOGRIDGE.VHS)

General Data Field 2: the source point long ID (i.e. FOGRIDGE.UIS:MYPOINT)

Sub MYPOINT_DELTA_CALC_OnInitializeEx(This)

'Add the trigger tag to the Points object

Points.AddPoint "FOGRIDGE.HSS:SYSTEM_DELTA_TRIGGER;TIMESTAMP",This

End Sub

Sub MYPOINT_DELTA_CALC_OnPointChange(This,Tag)

'Compute the delta and save to the MYPOINT_DELTA point

SYSTEM_DELTA_CODE_Compute This, "FOGRIDGE.UIS:MYPOINT_DELTA"

End Sub

SYSTEM_DELTA_TRIGGER

The point that triggers the OnTimer event to be called for all points that have SYSTEM_DELTA_TRIGGER added to the Points object (such as MYPOINT_DELTA_CALC).

Sub SYSTEM_DELTA_TRIGGER_OnInitializeEx(This)

'Set the timer to a one-minute interval

Timer.Set This, 60000

End Sub

Sub SYSTEM_DELTA_TRIGGER_OnTimer(This)

'Update the timestamp to force update of

'dependent HyperPoints

This.Timestamp = Now

End Sub
