Script Action Type

The Script action type is used to run a specified VB script that will process well test data and produce the values needed for the well test record. See Processing and Storing Well Test Results for more information about how the Well test results are written out to the VHS.

Click the following image for more information:

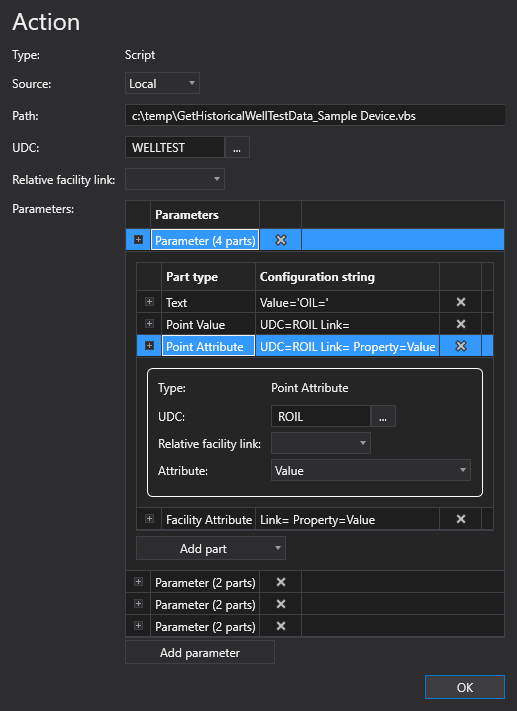

Sample Script Action Configuration

To configure a Script action

A Script action type can be configured from several different places within the well test configuration control. However, the base configuration is always the same. Perform the following steps to configure this type of action, referring to the property definitions below:

Click to Add action from the drop-down menu.
Select the Script action type from the Action type list. The action's properties will appear on the right.
Configure the Source for the script; Local, BSS, or Point.
Configure the Path to the script.
Select the UDC for the well test record.
Optional. Select a relative facility tag from the Relative facility link drop-down menu.
Configure the Parameters for the Script action:

Click to Add parameter to the Script action. Click the Parameter row to configure the Parts for the parameter as described below.
Click to Add part to the parameter. Configure the part's properties. Repeat as necessary for each part type.
Add as many Parameters as required for this Script action.

Click OK to accept the configuration.

Action Properties

The properties for the Script action type are described below.

Property	Description	XML
Type	Specifies the action type for the action.	type
Source	Specifies the path to the script file. Options include Local, BSS, or Point.	source
Path	Specifies a path to a file to perform additional scripted actions, including processing the well test data and producing the values needed for the well test record. For example: Local — c:\temp\GetHistoricalWellTest_Calculation.vbs BSS — MYSITE.BSS\WELLTEST\ProcessCalculationsGeneric.vbs Point — MYSITE.HSS:WELLTEST_SCRIPT	script
UDC	Specifies the UDC for the point to use when posting the well test record. This is an optional override value. The "Result" UDC defined in the UdcDef element will be used by default. E.g., WELLTEST. Click the browse button to open the Select UDC dialog box and select an appropriate UDC.	udc
Relative facility link	Specifies the relative facility tag to use for the action. E.g., Separator Note: The facility tag used as the starting point for the relative resolution depends on where this action type is configured. If the action is defined at a position level, then the base facility tag will be the well facility. If defined at the header level, the base facility will be the header facility.	relativeFacilityLink
Parameters	The Script or UIS Command action type may contain optional Parameters, which are used to pass in additional parameters to the action. Each Parameter contains one or more Parts, which are used to build strings that allows further configuration of the parameter. There are four types of Parts, each with associated configuration properties: Text — indicates a hard-coded Value that will be used in the parameter PointValue — indicates the UDC and Relative Facility Link that will be used in the parameter PointAttribute — indicates the UDC, Relative Facility Link, and the point attribute that will be used in the parameter FacilityAttribute — indicates the Relative Facility Link, and the facility attribute value that will be used in the parameter To add a parameter Click to add a new parameter to this action. Select the Parameter (0 parts) row to expand the Parameter configuration to display the Part grid. Add Parts as described below. Click to delete a selected parameter, as necessary. To add a part Click to add a part type and select a Part from the drop-down menu: Text Point Value Point Attribute Facility Attribute Select the Part type row to expand the Part configuration. See the Part Type Properties section below for information about the configuration options. Click to delete a selected part, as necessary.	<Parameters> <Parameter> <Part>

Part Type Properties

There are four part types, which are used to build strings that allow further configuration of the parameter. Perform the following steps to configure each type of part:

Click the desired part type heading to expand the configuration field.
Configure the properties described below for each part type, and the values will be added to the Configuration String in the part type heading.
Click to delete any unnecessary part type.

Text Part Type

Property	Description	XML
Type	Specifies the type of value for the part type. There are four part types: Text, Point Value, Point Attribute, and Facility Attribute.	type
Value	Specifies the value to be used for the text part type.	value

Point Value Part Type

Property	Description	XML
Type	Specifies the type of value for the part type. There are four part types: Text, Point Value, Point Attribute, and Facility Attribute.	type
UDC	Specifies the UDC to use to obtain the value for this point, point attribute, or facility attribute. Click the browse button to open the Select UDC dialog box and select an appropriate UDC.	udc
Relative facility link	Specifies the base facility tag to use to determine the resolved relative facility tag to use for this point, point attribute, or facility attribute.	relativeFacilityLink

Point Attribute Part Type

Property	Description	XML
Type	Specifies the type of value for the part type. There are four part types: Text, Point Value, Point Attribute, and Facility Attribute.	type
UDC	Specifies the UDC to use to obtain the value for this point, point attribute, or facility attribute. Click the browse button to open the Select UDC dialog box and select an appropriate UDC.	udc
Relative facility link	Specifies the base facility tag to use to determine the resolved relative facility tag to use for this point, point attribute, or facility attribute.	relativeFacilityLink
Attribute	Specifies a value, a point attribute, or a facility attribute. The available values to use for this field can be found in the CygNet.API Help file under the CygNet.Data.Core > CygNetCoreProperties.CygNetProperty Enumeration section.	attribute

Facility Attribute Part Type

Property	Description	XML
Type	Specifies the type of value for the part type. There are four part types: Text, Point Value, Point Attribute, and Facility Attribute.	type
Relative facility link	Specifies the base facility tag to use to determine the resolved relative facility tag to use for this point, point attribute, or facility attribute.	relativeFacilityLink
Attribute	Specifies a value, a point attribute, or a facility attribute. The available values to use for this field can be found in the CygNet.API Help file under the CygNet.Data.Core > CygNetCoreProperties.CygNetProperty Enumeration section.	attribute
