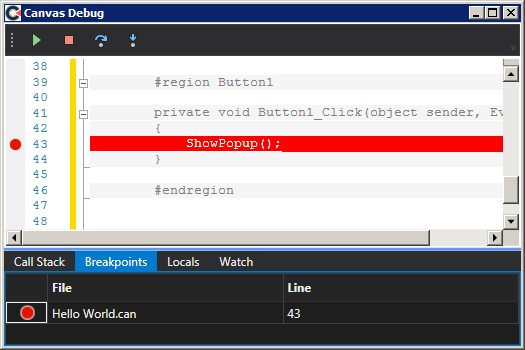

then Debug selected screen to open two screens:The Canvas debugger allows you to observe the run-time behavior of your script and locate logic errors. With the debugger, you can break execution to step through your code and evaluate variables in your application. The debugger works with all Canvas programming languages.
On the Canvas toolbar, click then Debug selected screen to open two screens:
The Canvas Debug dialog box toolbar contains the following buttons, which correspond to the associated shortcut.
| Icon | Command Option | Description | Keyboard Shortcut |
|---|---|---|---|
|
|
Start debugging |
Run / debug the script. The screen preview dialog box becomes active. |
F5 |
|
|
Stop debugging |
Terminate the debug process. |
Shift+F5 |
|
|
Step over |
Execute a single instruction in the script. If the instruction is a function call, the whole function is executed. See To step over a function call for more information. |
F10 |
|
|
Step into |
Execute a single instruction in the script. If the instruction is a function call, the debugger steps into the function. See To step into a function call for more information. |
F11 |
The Canvas Debug dialog box contains several panes that allow you to debug and interact with your script.
| Debug Panes | Description |
|---|---|
|
Call Stack |
The Call Stack pane displays call stack information, that is, the function or procedure calls that are currently on the stack. The pane shows the order in which methods and functions are getting called. The call stack is a good way to examine and understand the execution flow of your script. |
|
Breakpoints |
The Breakpoints pane displays a list of the active breakpoints in your script. See To set a function breakpoint for more information. |
|
Locals |
The Locals pane displays local variable values while in debug mode in the script editor. Local variables are those that are defined in the local scope, which is generally the function or method that is currently being executed and you can step through variables and watch them change. |
|
Watch |
The Watch pane is available to watch and evaluate variables and expressions while you are debugging. See To add a watch expression for more information. |
You can set breakpoints when you want to stop debugger execution, to see the state of code variables or to look at the call stack.
in the left margin, and the line of code is colored red as well. When you run this code in the debugger, execution stops whenever the breakpoint is hit, before the code on that line is executed. This command stops the process and its threads, enabling you to regain control of the debugger.Use the Step into command to execute code one statement at a time. Step into enters break mode at the current line of execution. If the statement is a call to a procedure, the next statement displayed is the first statement in the procedure. If there is no current execution point, the Step into command may appear to do nothing until you do something that triggers code, for example click on a document.
or F11) to execute a single instruction on the target. The debugger executes the function call and breaks at the beginning of the selected function. If the instruction is a function call, the debugger steps into the function.This command is like Step into. The difference in use occurs when the current statement contains a call to a procedure. Step over executes the procedure as a unit, and then steps to the next statement in the current procedure. Therefore, the next statement displayed is the next statement in the current procedure regardless of whether the current statement is a call to another procedure. Available in break mode only.
or F10) to execute a single instruction on the target. If the instruction is a function call, the whole function is executed.
|
|
|
