Donut

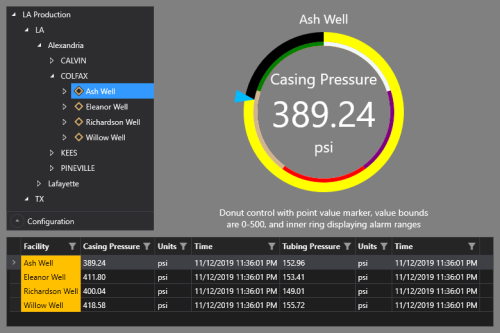

The Donut is a CygNet-aware control, which displays real-time point data on a circular linear scale. Data is represented in a ring that fills the donut in a clock-wise direction to a value between a lower and upper bound. The source of the lower value bound and upper value bound can be either hard-coded to an explicit value, or dynamically determined for each facility by sourcing the value from an application-specific attribute of the associated point (using an Indexed field or a General data field). A donut on a templated screen supports different bounds for each source facility. By using a point attribute to store the bounds (for example, Indexed 1 for the lower value bound and Indexed 2 for the upper value bound), you can have a templated screen without having to script the control. A configurable value marker is displayed on the donut to indicate the point value. A second inner ring is supported to show alarm ranges that correspond to the alarm setpoints for the associated point. A donut can optionally be labeled with three tokenized text strings. The control can display static text, such as a label, or dynamic text based on point or facility attributes. Dynamic text is built using tokens, which can represent real-time CVS point properties, point configuration properties, and facility properties. The color of the donut's color properties can be explicitly configured or can be sourced from the point state of the associated point. Colors in the control can be overridden when a custom color palette is selected for the screen. Font sizing, text styling, and text weighting are also configurable. Date, time, and value formatting for the text displayed on the control is supported. The control can be hidden if the associated point is invalid. This control supports tooltips, which can be displayed as tokenized text, a Canvas object, or the tooltip can be scripted to retrieve and display values for related points or CygNet notes. A context menu is available in run mode with access to CygNet point and alarm data, including alarm acknowledgment, current and history values, point and facility configuration, and trending point data on a default chart.

Property Inheritance

Property Inheritance

Property inheritance is a widely used concept in Canvas. The application supports an explicit relationship between screens, objects, and controls, where certain property values, such as SiteService and facility tags, are passed from one element to another via an inheritance framework. Screens, objects, and controls can be configured as property senders or property receivers and provide configuration options where you can explicitly define the source of the SiteService and facility. Depending on how you have your screens, objects, and controls set up, the SiteService and facility may come from any one of the following sources:

• from itself — indicated by selecting <Self> and then explicitly configuring the property
• inherited from the screen — indicated by selecting Screen, which is always present as a sender
• inherited from another control — indicated by selecting the Name of the sending control

Broadcasting

Screens and objects support an additional notification option to broadcast their SiteService and facility selection changes to other open screens running in the Canvas or Canvas View application. If configured, a <Broadcast> option is available to source the screen's SiteService and facility properties from another open screen.

For example, a text tool can be configured to get its facility from the screen and the screen can be configured to get its facility from a tag chooser. Or Screen_A might source its facility from Screen_B, which gets its facility from a tag chooser.

Receiver or Sender

The Donut control supports property inheritance as a receiver of its SiteService and facility:

The Donut control does not send its SiteService or facility to other controls.
