Custom Context Menu Items

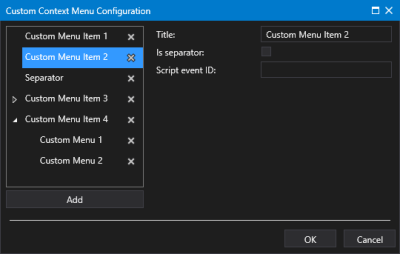

Sample Custom Context Menu Configuration dialog box

1. Click to open Custom Context Menu Configuration dialog box.
2. Click Add to add a menu item.
3. To add child menu items, select the parent menu item and click Add. You can add multiple nested menu items if desired.
4. Click to expand the menu items.
5. For each menu item click on <New> to reveal the properties:
   1. Title — The Title property specifies the menu name to be displayed in the runtime context menu.
   2. Is separator — The Is separator check box indicates whether this menu item will be a separator line in the menu at runtime. Once saved the separator has no configuration and no children. Separators do not have event IDs. Any event ID on a menu item when it’s converted to a separator is deleted. You can give it a title of 'Separator" or "----------" if desired.
   3. Script event ID — The Script event ID specifies the event ID that will be called when the menu item is selected from the runtime right-click context menu. The event ID is passed in as a parameter into the Custom Context Menu Action event, along with other relevant information in the context of the click, for example, facility or point tag, as appropriate.
6. Menu items can be easily reordered by dragging and dropping an item to a new location in the list.
7. Or click (Delete this item and its children) to remove a selected menu item as necessary.
8. Once the context menu items are configured, click OK to save.
9. Or click Cancel to abort and close the Custom Context Menu Configuration dialog box.
