Configuration Properties: Liquid Positive Meter

Configuration item properties for each positive meter device record can be accessed via the context menu. You can then edit or create records using a series of tabbed property pages. The property fields displayed on the Create New Configuration Log Entry or Edit Configuration Log Entry dialog box pages are the same. On each property page, configuration items not appropriate to the device type, or not applicable due to selected configuration item values, will be unavailable (dimmed).

Edit Configuration Log Entry - Liquid Positive Meter

You must have proper security authorization to edit configuration log entries. See FMS Security (and DEVCFG security event) for information about configuring security access.

Positive Meter Configuration Properties

The following configuration properties are available when creating, editing, or viewing configuration log entries for an Positive type liquid meter.

• Positive Property Page
• Thresholds Property Page
• Liquid Quality Property Page
• Misc Property Page

Use the Record details button to access contiguous records.

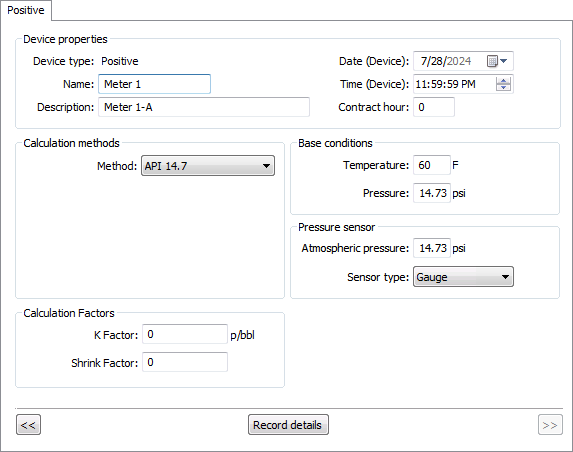

Positive Property Page

Click the Positive tab to access the property page to configure, edit, or view device-specific properties for the selected Positive meter.

See FMS Configuration Data Items for more information about specific configuration items shown on these property pages.

Positive Property Page

Thresholds Property Page

Click the Thresholds tab to access the property page to configure, edit, or view threshold properties for the selected Positive meter.

See FMS Configuration Data Items for more information about specific configuration items shown on these property pages.

Thresholds Property Page

Liquid Quality Property Page

Click the Liquid Quality tab to access the property page to configure, edit, or view liquid quality properties for the selected Positive meter. The total composition value of the GQ items is also provided on this page. Optionally click Normalize to 1.0 or Normalize to 100% (dependent upon the applicable unit set) to normalize the data to a total value of 1.0 or 100%.

See FMS Configuration Data Items for more information about specific configuration items shown on these property pages.

Liquid Quality Property Page

Miscellaneous Property Page

Click the Misc tab to access the property page to configure, edit, or view miscellaneous properties for the selected Positive meter.

In the Calculation properties section, enabling Adjust for wet flowing conditions results in application of GPA-2172 calculations to correct history data outputs to dry basis values and, after data polls or history imports are performed, to correct normalized history data values.

See FMS Configuration Data Items for more information about specific configuration items shown on these property pages.

Miscellaneous Property Page

Record Details Button

When editing records, each property page provides access to a pair of navigation buttons (<<, >>) and a Record details button at the bottom of the page. You can use this feature to verify auditing information and, if there are multiple records displayed within the current time window shown in the control, to quickly access contiguous configuration log entries.

When there are multiple records available within the time window, use the << and >> navigation buttons to navigate between contiguous records, and find one for which you want to view more concise information about the configuration log record change(s). As you navigate between records, the current record properties are reflected in the device properties area of the Positive property page.

Once the desired record is found, click Record details to access the Record Details dialog box where you can view details such as the date and time of the configuration log record change, the ID of the user who made the change, and optionally the audit category assigned and/or any comments entered regarding the change.

See Viewing Record Details for more information.
