Configuring General Device Properties
The SonicMQ General page contains general information about the SonicMQ Export such as device descriptors, logging, and security options.
|

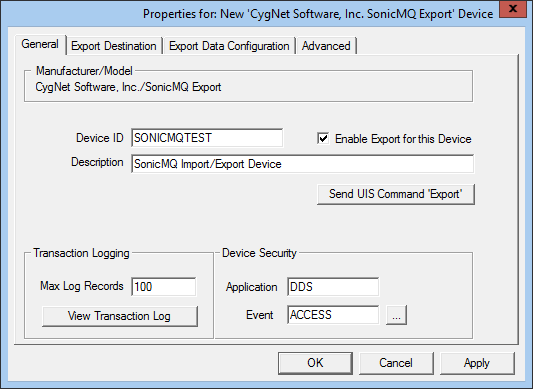

SonicMQ EIE - General Page |
The properties for each section of this page are described below.
| Property | Description | ||||||
|---|---|---|---|---|---|---|---|
|
Device ID |
The unique identifier of an instance for this device. This free-form name must be unique in the DDS and the FAC. That is, it must be a name not used by any other communication device, import/export device, remote device, or facility. CygNet naming standards for device ID are as follows:
|
||||||
|
Enable Export for this Device |
Select whether to enable or disable the device. The default setting is disabled. If an invalid configuration is detected, the device will automatically be disabled. The device can be re-enabled after the invalid configuration is fixed. |
||||||
|
Description |
A free-form description of the device. 32 character maximum. |
||||||
|
Send UIS Command 'Export' |
Click to perform the UIS command 'Export' using the device configuration. See UIS Commands for more information. | ||||||
|
Transaction Logging |
|||||||
|
Max Log Records |
The maximum number of transaction history records that can be maintained for the device. Each UIS command executed by the device will generate a single transaction log. If the device is setup for active monitoring, one transaction will be created whenever a new file is detected. If multiple files are detected at the same time, it will still result in one transaction. |
||||||
|
View Transaction Log |
Click to view transaction and status log entries. |
||||||
|
Device Security |
|||||||
|
Application |
Defines the ACS security application name used to validate the users of this device. See Applications, Events, Permissions. |
||||||
|
Event |
Defines the ACS security event used to validate users of this device. Click … to select the security event. See Applications, Events, Permissions. |
||||||
