Indexed 1

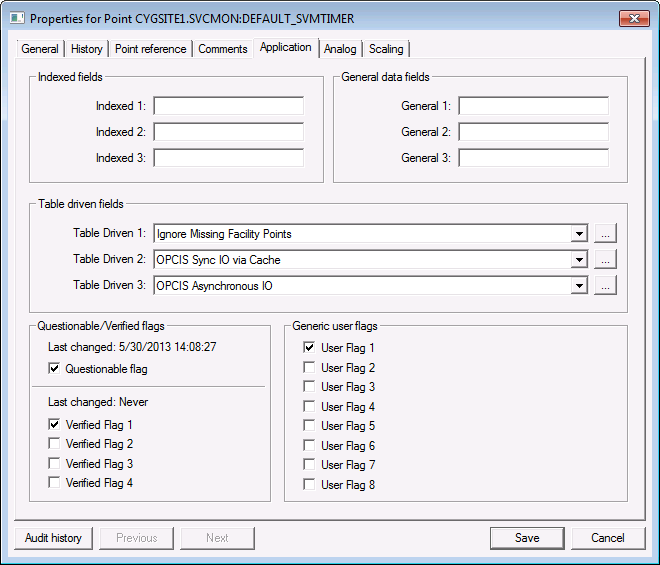

Use the Indexed 1, Indexed 2, or Indexed 3 data field to specify a property that is included in a defined PNT index.

The value can be free-form text up to a maximum of 15 characters.

Indexed 2

Indexed 3

General 1

Use the General 1 data field to configure application-specific properties for a particular point. The value can be free-form text up to a maximum of 20 characters.

Group Rollup Filter Definition

Use the General 1 data field to specify a group rollup filter definition. You can use facility attributes or group node attributes.

Use the General 3 data field to reference a Group Service (GRP) attribute if the filter definition exceeds 20 characters.

For more information about uses for these properties, see Filtering a Group Rollup.

OPCIS Points

Many OPC servers initialize tags to a sentinel value (for example, -9999.99) that does not represent a true tag value. Set the General 1 data field to a numeric value that should be ignored. When a tag with this value is received from the external OPC Server, it is marked as unreliable, but the value will be discarded and the previous value is retained.

For more information about OPC Group Definition tags, see OPCIS Groups.

SVCMON Points

For more information, see Validating the SVCMON.

General 2

Use the General 2 data field to configure application-specific properties for a particular point. The value can be free-form text up to a maximum of 20 characters.

Group Rollup Filter Definition

Use General 2 data field to change the leaf node type of a node that is a child of a summary group node.

By default, filtering is based on leaf nodes that are of the type Facility (~type=~F). This filter option works in conjunction with the General 1 and/or General 3 data field.

The only reason a leaf node would not be a facility type is if the group were manually created.

For more information about uses for these properties, see Filtering a Group Rollup.

SVCMON Points

For more information, see Validating the SVCMON.

General 3

Use the General 3 data field to configure application-specific properties for a particular point. The character limits for General 3 data field are as follows:

• Group node attributes 4 through 7 allow up to 40 characters
• Group node attributes 8 and 9 allow up to 60 characters.

Group Rollup Filter Definition

Use the General 3 data field to specify a reference to a Group Service (GRP) attribute that contains a facility attribute filter definition. This field is useful if the filter string is too long to fit in the General 1 data field.

For example, if the value used in the General 3 data field is ~attr8, group node attribute 8 contains the relevant facility attribute filter information. View the group node in the Group Service Explorer.

For more information about uses for these properties, see Filtering a Group Rollup.

Table Driven 1

Use the Table Driven 1 data field to configure application-specific properties for a particular point. The table entry is from the TRS.CMT1 table.

OPCIS Points

The Table Driven 1 data field has special meaning for an OPC Group Definition tag. It can be used to indicate what to do with the value of an OPC tag with OPC Quality flags that indicate an error. That is, how is the value of the real-time record in the OPCIS updated when unreliable data is returned from an external OPC Server.

Select a value from the drop-down menu or click … to select or configure an entry. Two default options are supported: store the value or ignore the value. The default behavior is to mark it as unreliable and save the value from the external OPC Server.

• If set to OPCIS Store Unreliable Value (OPCBADSTR) and a value with a bad OPC quality is read from the OPC Server, the value will be stored. When the value is stored, the UNRELIABLE status bit is set and the timestamp is updated.
• If set to OPCIS Ignore Unreliable Value (OPCBADIGNR) and a value with a bad OPC quality is read from the OPC Server, the value will be discarded and the previous value is retained. When the previous value is retained, the UNRELIABLE status bit is set and the timestamp is updated.

Normal point processing will occur to determine if the updated real-time record is sent to the VHS, and since either the status bits or the value have changed, the record will be sent to the VHS. However, if the UNRELIABLE status bit was previously set, then neither the value nor status bits will have changed and so no new record will be sent to the VHS.

For more information, see OPCIS Groups.

SVCMON Points

For more information, see Validating the SVCMON.

Table Driven 2

Use the Table Driven 2 data field to configure application-specific properties for a particular point. The table entry is from the TRS.CMT2 table.

OPCIS Points

The Table Driven 2 data field has special meaning for an OPC Group Definition tag. It can be used to specify whether the OPC server is to retrieve data from the cache or the device. This applies to all synchronous communication. This attribute provides the functionality of the OPC_SYNC_IO configuration file keyword at the group level.

Select a value from the drop-down menu or click … to select or configure an entry. Two default options are supported: sync data via the cache or sync data via the device.

• If set to OPCIS Sync IO via Cache (OPCSYNCCCH), the OPCIS will sync IO via the cache
• If set to OPCIS Sync IO via Device (OPCSYNCDEV), the OPCIS will sync IO via the device.

For more information, see OPCIS Groups.

Table Driven 3

Use the Table Driven 3 data field to configure application-specific properties for a particular point. The entry is from the TRS.CMT3 table.

OPCIS Points

The Table Driven 3 data field has special meaning for an OPC Group Definition tag. It can be used to define the type of communication between the OPCIS and the OPC server. This attribute provides the functionality of the OPC_IO_TYPE configuration file keyword at the group level.

Select a value from the drop-down menu or click … to select or configure an entry. Two default options are supported: asynchronous callbacks or synchronous IO.

• If set to OPCIS Asynchronous IO (OPCIOASYNC), the OPCIS will use asynchronous callbacks, since asynchronous IO is not supported by the OPCIS.
• If set to OPCIS Synchronous IO (OPCIOSYNC), the OPCIS will use synchronous IO.

For more information, see OPCIS Groups.

Last changed

Indicates when the Questionable flag was last changed.

Questionable flag

Use the Questionable flag data field to indicate data is questionable.

Last changed

Indicates when any Verified Flag was last changed.

Verified Flag 1

Verified Flag 2

Verified Flag 3

Verified Flag 4

Use one of the internal Verified Flags 1-4 to indicate that a Verified Flag attribute property in the point record is set.

Options are 1 (Yes) or 0 (No).

Any User Flag

User Flag 1

User Flag 2

User Flag 3

User Flag 4

User Flag 5

User Flag 6

User Flag 7

User Flag 8

Use one of the generic User Flags 1-8 to indicate that a User Flag attribute property in the point record is set.

Options are 1 (Yes) or 0 (No).
