CxFmsBalanceCtrl Example

Use the CxFmsBalanceCtrl object to display and manipulate an ActiveX CygNet FMS Balance Control in a CygNet Studio screen environment.

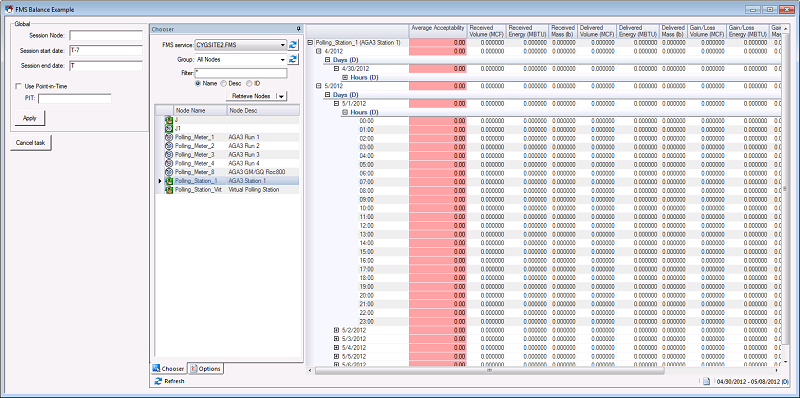

CygNet FMS Balance Control Example

To see an example FMS Balance control implemented in a pre-designed screen, open the FMS Balance Ctrl.csf file found in the APPS SCREXAMP or in the CygNet\Clients\CStudio\Screens\Examples folder.

CygNet Studio Screen Script: FMS Balance Ctrl.csf

Copy

CxFmsBalanceCtrl Example

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
Sub btnApply_EventClick()
Dim This : Set This = btnApply
    FmsBalance.SessionNodeTag = editSessionNode.Text
    FmsBalance.SessionBeginDate = editStartDate.Text
    FmsBalance.SessionEndDate = editEndDate.Text
    FmsBalance.PITDateTime = editPIT.Text
    FmsBalance.UsePIT = checkUsePIT.Check
    FmsBalance.Apply True
End Sub

Sub btnCancel_EventClick()
Dim This : Set This = btnCancel
    FmsBalance.Cancel
End Sub

Sub checkUsePIT_EventChange()
Dim This : Set This = checkUsePIT
    FmsBalance.UsePIT = this.Check
    editPIT.Enable this.Check
End Sub

Sub TheView_EventInitialize()
Dim This : Set This = TheView
    editSessionNode.Text = FmsBalance.SessionNodeTag
    editStartDate.Text = FmsBalance.SessionBeginDate
    editEndDate.Text = FmsBalance.SessionEndDate

    checkUsePIT.Check = FmsBalance.UsePIT
    editPIT.Text = FmsBalance.PITDateTime
    editPIT.Enable = FmsBalance.UsePIT
End Sub
