CxFmsConfigCtrl Example

Use the CxFmsConfigCtrl object to display and manipulate an ActiveX CygNet FMS Configuration Control in a CygNet Studio screen environment.

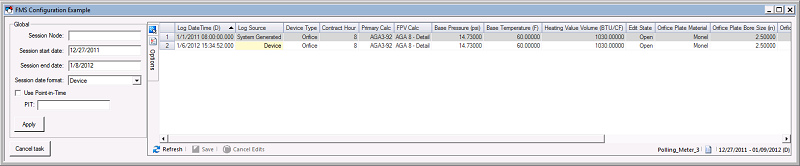

CygNet FMS Configuration Control Example

To see an example FMS Configuration Control implemented in a pre-designed screen, open the FMS Config Ctrl.csf file found in the APPS SCREXAMP or in the CygNet\Clients\CStudio\Screens\Examples folder.

CygNet Studio Screen Script: FMS Config Ctrl.csf

Copy

CxFmsConfigCtrl Example

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
Sub btnApply_EventClick()
Dim This : Set This = btnApply
    FmsConfig.SessionNodeTag = editSessionNode.Text
    FmsConfig.SessionBeginDate = editStartDate.Text
    FmsConfig.SessionEndDate = editEndDate.Text
    FmsConfig.SessionDateFormat = cboDateFormat.Selection
    FmsConfig.PITDateTime = editPIT.Text
    FmsConfig.UsePIT = checkUsePIT.Check
    FmsConfig.Apply True
End Sub

Sub btnCancel_EventClick()
Dim This : Set This = btnCancel
    FmsConfig.Cancel
End Sub

Sub cboDateFormat_EventChange()
Dim This : Set This = cboDateFormat
    FmsConfig.SessionDateFormat = this.Selection
End Sub

Sub checkUsePIT_EventChange()
Dim This : Set This = checkUsePIT
    FmsConfig.UsePIT = this.Check
    editPIT.Enable this.Check
End Sub

Sub TheView_EventInitialize()
Dim This : Set This = TheView
    editSessionNode.Text = FmsConfig.SessionNodeTag

    editStartDate.Text = FmsConfig.SessionBeginDate
    editEndDate.Text = FmsConfig.SessionEndDate
    cboDateFormat.AddString "Device"
    cboDateFormat.AddString "Contract"
    cboDateFormat.AddString "Local"
    cboDateFormat.Selection = FmsConfig.SessionDateFormat

    checkUsePIT.Check = FmsConfig.UsePIT
    editPIT.Text = FmsConfig.PITDateTime
    editPIT.Enable = FmsConfig.UsePIT
End Sub
