CxFmsNodeChooserCtrl Example

Use the CxFmsNodeChooserCtrl object to display and manipulate an ActiveX CygNet FMS Node Chooser Control in a CygNet Studio screen environment.

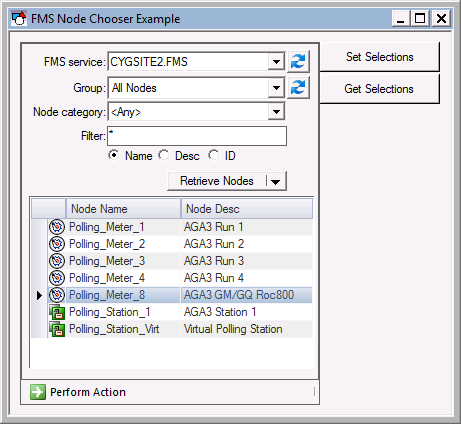

CygNet FMS Node Chooser Control Example

To see an example FMS Node Chooser control implemented in a pre-designed screen, open the FMS Node Chooser Ctrl.csf file found in the APPS SCREXAMP or in the CygNet\Clients\CStudio\Screens\Examples folder.

CygNet Studio Screen Script: FMS Node Chooser Ctrl.csf

Copy

CxFmsNodeChooserCtrl Example

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
Sub btnGetSelections_EventClick()
Dim This : Set This = btnGetSelections
    Dim arySelected

    arySelected = FmsNodeChooser.GetNodeSelection()

    Dim i, strMsg
    For i = 0 To UBound(arySelected)
        strMsg = strMsg & arySelected(i) & Vbcr
    Next

    MsgBox strMsg
End Sub

Sub btnSetSelections_EventClick()
Dim This : Set This = btnSetSelections
    Dim aryNodes
    Redim aryNodes(1)

    aryNodes(0) = "2540"
    aryNodes(1) = "2541"

    FmsNodeChooser.SetNodeSelection aryNodes
End Sub

Sub FmsNodeChooser_EventUpdated()
Dim This : Set This = FmsNodeChooser
    Dim arySelected

    arySelected = FmsNodeChooser.GetNodeSelection()

    If UBound(arySelected) > 0 Then
        MsgBox "Can only select one Node as the Session Node"
    Elseif UBound(arySelected) = 0 Then
        MsgBox arySelected(0) & " set as the Session Node"
        'add script here to set Session Node
    Else
        MsgBox "You must select a Node first"
    End If
End Sub
