CygNet Message Sniffer Lite Utility

The CygNet Message Sniffer Lite utility (SnifferLite.exe) is a diagnostic tool that captures and evaluates all CygNet message traffic occurring on a CygNet client or host. Sniffer Lite is designed to help the CygNet administrator understand what messaging is occurring between CygNet clients and services in order to diagnose problems and improve performance.

The diagnostic sequence of the CygNet Message Sniffer Lite utility is:

Starts the capture of CygNet messaging traffic.
Reproduces the suspected messaging problems.
Stops the capture of messages.
Allows the user to evaluate the captured messages to support or dispute assumptions.

CygNet uses RUDP for packet transmission. For more information, see CygNet Data Packets and RUDP.

Note: You should only capture messages continuously with Sniffer Lite for a brief period of time (a few minutes) since it stores all of the captured messages in memory and could cause errors if messages are captured for a longer period of time.

The CygNet Message Sniffer Lite utility is stored in the CygNet\Utilities (SnifferLite.exe) directory on the host server. To start the utility, use Windows Explorer to browse to the directory and double-click the program icon.

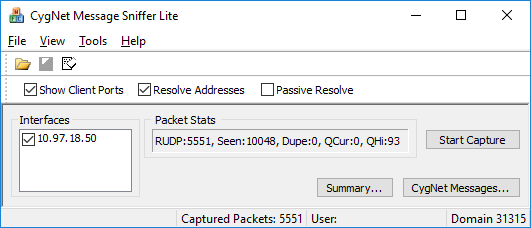

Sniffer Lite Utility

CygNet Message Sniffer Lite Utility

For more information, see the following subsections:

CygNet Message Sniffer Lite Utility Properties
To Capture Messages Using Sniffer Lite
View the CygNet Message Summary
View the CygNet Message Viewer
Common Messages Captured Using Sniffer Lite

CygNet Message Sniffer Lite Utility Properties

The following table lists and describes CygNet Message Sniffer Lite Utility properties.

Property or Button	Description
Show Client Ports	Include the client ports where appropriate in the client column.
Resolve Addresses	Sets attributes on the packet capturing object within the utility and sends out packets to gather further information.
Passive Resolve	Sets attributes on the packet capturing object within the utility.
Interfaces	Lists the available network interfaces.
Packet Stats	Displays the packet statistics of the captured messages.
Start Capture/ Stop Capture	Starts the capture of CygNet messages, opens the Packet Stats dialog box, and changes the button to Stop Capture, which when clicked ends the capture process.
Summary	Opens the CygNet Message Summary dialog box.
CygNet Messages	Opens the CygNet Message Viewer, which displays the list of captured CygNet messages.

To Capture Messages Using Sniffer Lite

Go to the CygNet\Utilities directory on the host server and open the CygNet Message Sniffer Lite (SnifferLite.exe) utility.
Select the desired parameters and interfaces. If you have multiple network adapters on your machine, ensure each one is checked in the Interfaces list box so that all messages are captured.
Click Start Capture. The Packet Stats dialog box opens and the changing values confirm messages are successfully being captured. As the capture proceeds, the values increment to show the Total number of packets captured, the percentage of RUDP and each type of packet, the number of Dropped packets, and the number of Bytes captured.

Packet Stats

CygNet Message Sniffer Lite, Packet Stats

Note: If User Account Control (UAC) is enabled, capturing CygNet messages requires administrator-level permission. See CygNet and User Account Control for more information.

If desired, click Hide to hide the Packet Stats dialog box.
If analyzing a CygNet client (for example, CygNet Explorer), open the client that is demonstrating the slow performance time and wait for it to load fully.
Click Stop Capture to end the capture process.
To view the list of CygNet messages captured, click CygNet Messages. The CygNet Message Viewer dialog box displays the captured messages. Sorting on the column headers facilitates viewing according to categories.
1. To isolate specific messages or message types, right-click a message and choose an option from the drop-down menu. Another CygNet Message Viewer dialog box opens to display only the selected options.
2. Click the 1st Pkt No. column header to view the messages in the order sent.
3. The Delta (ms) column displays the amount of time it took to request and receive data for each message.

To view a summary of all messages, click Summary. The CygNet Message Summary dialog box opens.

View the CygNet Message Summary

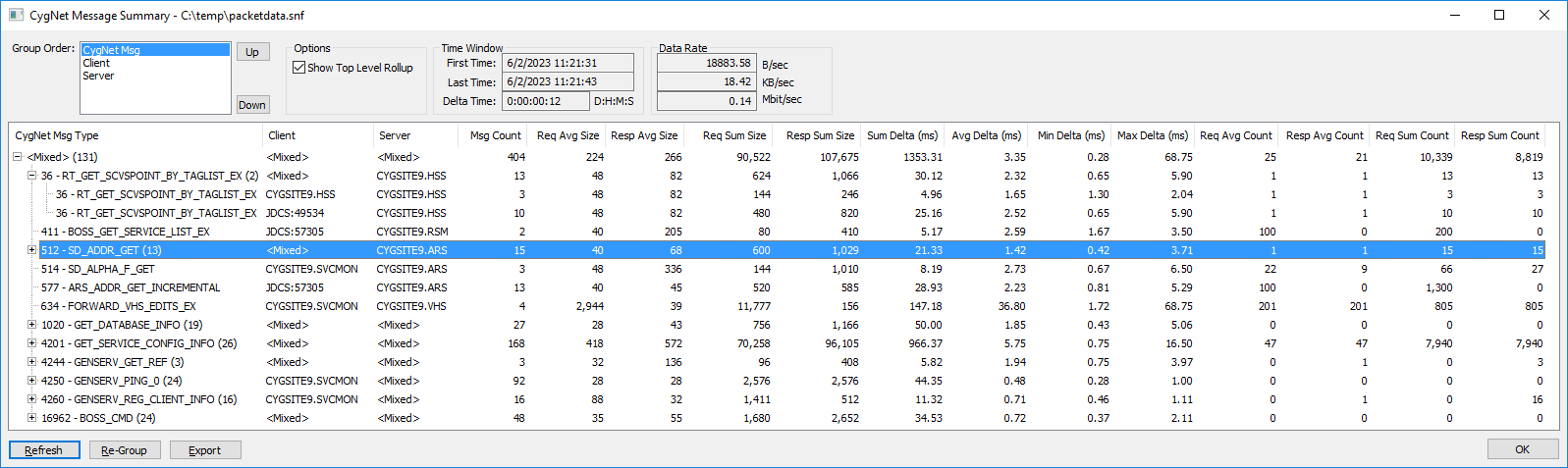

Click the thumbnail to see
an example CygNet Message Summary

The CygNet Message Summary dialog box provides a high-level view of the CygNet messages captured using the CygNet Message Sniffer Lite utility. By moving the groups up or down in the Group Order field and then clicking Refresh, a user can view the messages according to client, server, or message. The first three columns of the display change accordingly.

A user can expand specific items in the list for more information. If Show Top Level Rollup is checked, clicking Re-Group will roll up the expanded items. The Time Window displays the start time, end time, and duration of the capture. The Data Rate displays the bits per second, kilobytes per second, and megabits per second.

The Export button exports the data in the summary to a CSV file. For more information, see Common Message Types Captured Using Sniffer Lite.

CygNet Message Summary Columns

The following table describes the columns on the CygNet Message Summary dialog box.

Column	Description
CygNet Msg Type	The type of CygNet message captured by Sniffer Lite. For more information, see Common Message Types Captured Using Sniffer Lite. Click to expand the message Click to collapse the message
Server	The name of the server (Site.Service) sending the message. If more than one Server, the report shows <Mixed>.
Client	The name of the client (Site.Service or other client) receiving the message. If more than one client, the report shows <Mixed>.
Msg Count	The total number of messages captured.
Req Avg Size, Resp Avg Size	The average size of the request and response messages.
Req Sum Size, Resp Sum Size	The total size of the request and response messages.
Sum Delta (ms), Avg Delta (ms), Min Delta (ms), Max Delta (ms)	The total, average, minimum, and maximum deltas of the messages in milliseconds. The delta is the length of time between the time start and end time of each message.
Req Avg Count, Resp Avg Count	The average number of request and response messages.
Req Sum Count, Resp Sum Count	The total number of request and response messages.

View the CygNet Message Viewer

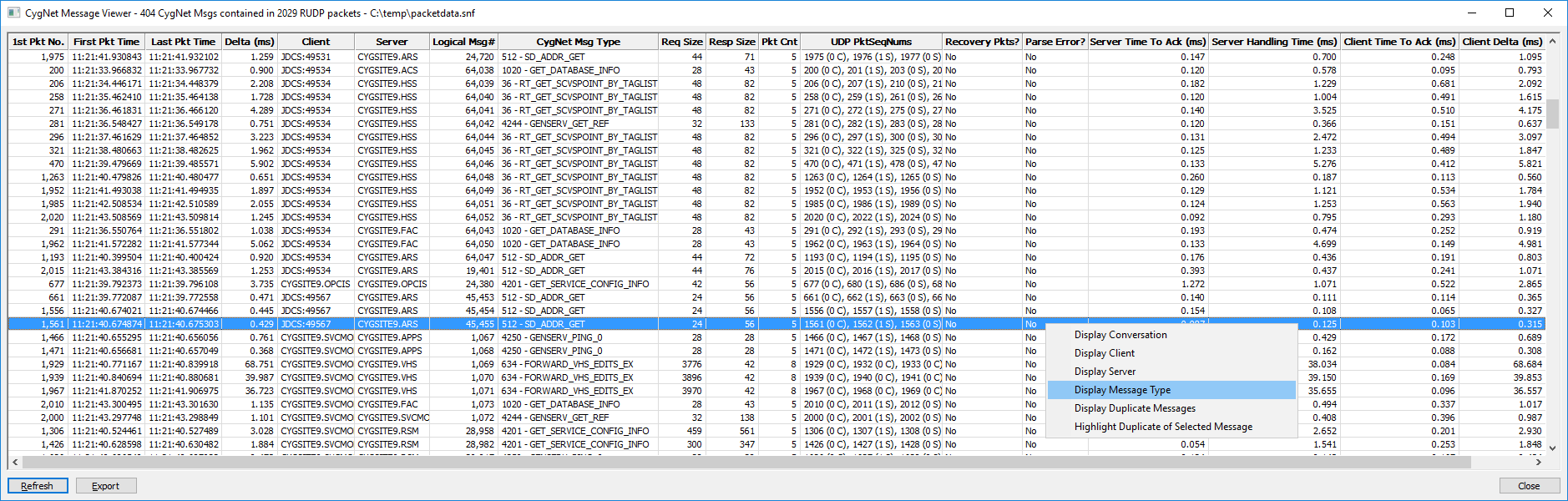

Click the thumbnail to see
an example CygNet Message Viewer

The CygNet Message Viewer dialog box displays the list of captured CygNet messages. The title displays the number of messages contained in the RUDP packets. Sorting on the column headers facilitates viewing according to categories. For example, clicking the 1st Pkt No. column header sorts the messages in the order sent. Clicking the Server column header sorts the list by the CygNet service name to which the message was sent. Selecting Refresh returns the list to its original order.

Message Viewer Context Menu

Right-clicking on a message displays a drop-down menu with six options available for the user to isolate messages. Each option opens another CygNet Message Viewer dialog box that displays more information about each message:

Display Conversation — displays the full conversation between the client and the server
Display Client — displays messages by client
Display Server — displays messages by server
Display Message Type — displays messages by CygNet message type
Display Duplicate Message — displays all messages that are duplicates. A duplicate message is one where the request and response data are the same. There are many messages where this is might be okay, (for example, GET_DATABASE_INFO, SD_ADDR_GET), because they are used as status checking, but lots of duplicate messages may be indicative of a case where messages are being sent unnecessarily. Duplicate detection includes client IP address, but not the port, so that captures on service machines don't identify two different client machines making identical requests.
Highlight Duplicate of Selected Message — selects and highlights all messages in the current view that are duplicates of the highlighted message

The Export button exports the data from the CygNet Message Viewer to a CSV file.

CygNet Message Viewer Columns

The following table describes the columns on the CygNet Message Viewer dialog box.

Column	Description
1st Pkt No.	The number of the first packet.
First Pkt Time	The timestamp of the first packet.
Last Pkt Time	The timestamp of the last packet.
Delta (ms)	The amount of time it took to request and receive data for each message in milliseconds. Indicates how long the client was waiting for data. See Client Delta (ms) below.
Client	The name of the client (Site.Service or other client) receiving the message.
Server	The name of the server (Site.Service) sending the message.
Logical Msg#	The number of logical messages.
CygNet Msg Type	The type of CygNet message captured by Sniffer Lite. For more information, see Common Message Types Captured Using Sniffer Lite.
Req Size, Resp Size	The size of the request and response messages.
Pkt Cnt	The number of packets in the message.
UDP PktSeqNums	The UDP packet sequence numbers in the message.
Recovery Pkts?	Indicates whether the message contained any recovery packets.
Parse Error?	Indicates whether the message contained any parse errors.
Server Time To Ack (ms)	Indicates how long it took for the server to acknowledge the receipt of data from the client (in milliseconds). Server Time To Ack and Client Time To Ack are closely related. If the packet capture was made on the client machine, Server Time To Ack is a rough approximation of the network latency between the client and server, and Client Time To Ack should be close to zero. If the packet capture was made on the server machine, Client Time To Ack is a rough approximation of the network latency between the client and server, and Server Time To Ack should be close to zero.
Server Handling Time (ms)	Indicates how long it took for the server to actually meaningfully respond to the message (in milliseconds). For example, for a typical DBS message, how long did it take to read data from the disk cache or disk.
Client Time To Ack (ms)	Indicates how long it took for the client to acknowledge the receipt of data from the server (in milliseconds). See the note above about Client Time To Ack and Server Time To Ack.
Client Delta (ms)	Indicates how long the client was actually waiting for data (in milliseconds). Client Delta (ms) only makes sense if the capture was made on the client machine. On a network with low latency, the times for Client Delta (ms) and Delta (ms) will be fairly close, but on a network with high latency, Client Delta (ms) may be roughly half of the time of Delta (ms), unless Server Handling Time (ms) dwarfs Server Time To Ack (ms). If the capture is made on an independent third machine, then all of the deltas are trickier to assign exact meaning, absent further context. If the third machine is close to either the server or client, then you can apply the above guidelines for dealing with Server Time To Ack, Server Handling Time, and Client Time To Ack, for whichever machine it is close to, but if the third machine is halfway between the client and server, and the latency is high between all three machines, then the numbers are more difficult to describe.

Common Message Types Captured Using Sniffer Lite

The following table lists common types of messages that are captured when using the CygNet Message Sniffer Lite utility. This list is not inclusive, as messages may vary and the actual messages may contain various parameters specific to different clients and users.

Captured Message	Description
ADD_EVENT	Adds an entry into an ELS.
CAS_GET	Updates client alarms.
GENSERV	Registers information to or gathers information from services.
GET_DATABASE_INFO	Requests basic information about a database (for example, sequence number).
GET_INCREMENTAL	Requests incremental information about a database. Can also gather a list of keys and updates.
GET_TABLE_ROW	Gathers table row information from a database.
GET_TABLE_ROW_BY_INDEX	Uses an index to gather table row information.
GET_VHS_INCREMENTAL_CHANGES	Gathers list of incremental changes to a VHS.
LIST_HISTORY_VALUES_EX	Reads history values from a point in chronological order based on a given timestamp. Can be related to a trend in a CygNet Studio screen.
READ_DATA	Reads data from a service. Can appear due to missing index.
RT_GET	Compiles entire lists of real-time service components (for example, points and facilities).
RT_GET_TAGLIST	Returns a list of real-time tags from a service.
SD_ADDR_GET	Used by an ARS asking for address/location of another service.
RT_SET_CVS_POINT	Sets a real-time value.

Menu and Toolbar Options

The following tables list and define command options accessed using the CygNet Message Sniffer Lite utility menu and toolbar. See the following sections below for more information:

File Menu Options
View Menu Options
Tools Menu Options
Help Menu Options

File Menu Options

The following table lists and describes File menu options.

Option	Description	Shortcut
Open	Select a previously captured message file. Browse to look for an .snf file.	Ctrl+O
Save	Select to save the captured packet data as an .snf file. The default file name is packetdata.snf, but you can rename it if necessary. The title bar of the CygNet Message Summary and CygNet Message Summary dialog boxes will indicate if the packet data is Unsaved. Once saved, the name of the saved packet data file will be displayed in the title of the various Sniffer Lite dialog boxes if reopened.	Ctrl+S
Import PCAP	Not implemented.	Ctrl+I
Export PCAP	Not implemented.
Clear	Select to clear packets from the capture buffer and clear statistics.	Ctrl+X
Start Capture	Starts the message capture process. See To Capture Messages above.
Stop Capture	Stops the message capture process. See To Capture Messages above.
<Recent File>	A numbered list of recent files.
Exit	Select to quit the CygNet Message Sniffer Lite utility.

View Menu Options

The following table lists and describes View menu options.

Option	Description
Toolbar	Click to hide or show the toolbar.
Display Options	Click to hide or show the check boxes under the toolbar.
Packet Stats	Select to show the Packet Stats dialog box, if it has been hidden.

Tools Menu Options

The following table lists and describes Tools menu options.

Option	Description
Capture Options	Select to configure the packet capture options: Promiscuous Mode — On (default) or Off Capture Method Buffer Size in Megabytes — 10 is default
PCAP Mass Convert	Not implemented.

Option

Description

Capture Options

Select to configure the packet capture options:

Promiscuous Mode — On (default) or Off
Capture Method
Buffer Size in Megabytes — 10 is default

PCAP Mass Convert

Not implemented.

Help Menu Options

The following table lists and describes Help menu options.

Option	Description
About CygNet Sniffer Lite	Displays an About CygNet Packet Sniffer Lite Utility dialog box to view application information. Available information includes the following: The application name, version, and release date Copyright information The CygNet Software website address, including a hyperlink to the website The log file location, including a hyperlink to the log file The location of the application's file executable In addition to information about the application, the About box includes the following buttons: Client Settings — opens the Client Settings dialog box to view and modify client log settings for the application on an ad hoc basis. See Client Log Settings in the Logging section for more information. Diagnostics — access the following options for additional analysis from the drop-down menu: Loaded Modules — use this option to view and search file information for modules loaded in your system. Double-click any result row to view properties for that module. See Loaded Modules for more information. Gather Logs — accesses the Windows file directory where the open log files are located. Double-click to select and view an application log file. User Local Crash Dumps — Local crash dumps are not enabled. See Generating Crash Dumps for more information. Close — click to close the About box.

Option

Description

About CygNet Sniffer Lite

Displays an About CygNet Packet Sniffer Lite Utility dialog box to view application information.

Available information includes the following:

The application name, version, and release date
Copyright information
The CygNet Software website address, including a hyperlink to the website
The log file location, including a hyperlink to the log file
The location of the application's file executable

In addition to information about the application, the About box includes the following buttons:

Client Settings — opens the Client Settings dialog box to view and modify client log settings for the application on an ad hoc basis. See Client Log Settings in the Logging section for more information.
Diagnostics — access the following options for additional analysis from the drop-down menu:

Loaded Modules — use this option to view and search file information for modules loaded in your system. Double-click any result row to view properties for that module. See Loaded Modules for more information.
Gather Logs — accesses the Windows file directory where the open log files are located. Double-click to select and view an application log file.
User Local Crash Dumps — Local crash dumps are not enabled. See Generating Crash Dumps for more information.

Close — click to close the About box.
