Configuring an Address Record

To Configure an Address Record

An Address Record may contain only one address. To send multiple notification types to the same recipient create an Address Record for each notification type and then use a Group Record to group the addresses. The format of the addresses for the different notification types are shown in the table below.

Using CygNet Explorer, right-click in the GNS pane and select New.

Type the ID and Description for the record.

In the Type box, select Address.

Click on the Addresses page.

Click New to open the Notification Address for GNS ID dialog box.

In the Type box, select the notification address type.

In the Address box, type the address applicable to the notification type. See the table below for the appropriate address format.

In the Description box, enter a description for the recipient. This property is optional.

For Numeric pager only, set a Numeric Delay.

Set the options for each of the subsequent properties for this notification record. Each property is described below.

Click OK to save the recipient information.

Click OK to save the notification record.

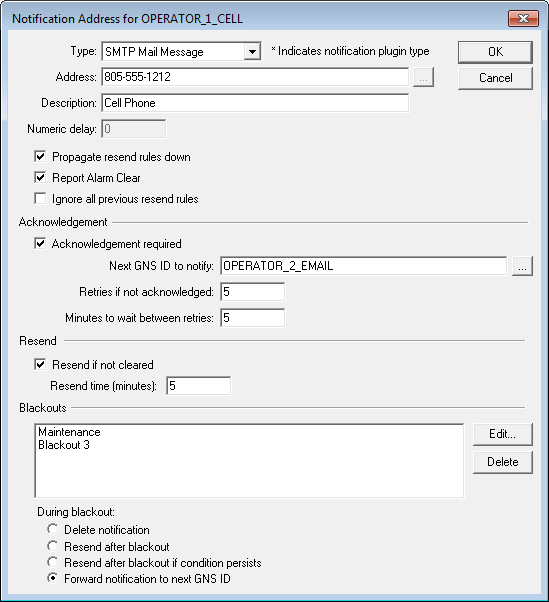

The properties on the Notification Address dialog box are described below.

Property	Description
Type	The type of notification for this recipient. See Notification Address Types for more information about each type.
Address	Specifies the address applicable to the notification type. See Notification Type Address Formats below.
Description	Specifies an optional description for the recipient.
Numeric Delay	Specify the number of delays to include in the dial command line. The number of delays translates to a dial modifier (,), which causes the modem to pause after dialing. Example For a pager address of 555124, a Numeric Delay of 2, and a numeric message of 41, the resulting ATDT line looks like this: ATDT 5551234,,41 causing the modem to pause twice after dialing the pager address. The pause length is determined by a register setting on the modem, usually two seconds per comma. Note: Numeric Delay applies only to Numeric Pager (PG) notification type.
Propagate resend rules down	Propagate resend rules down applies only to Reference Address recipients in Event and Group records. If this option is enabled, the Acknowledgment, Resend, and Blackout settings are propagated to all referenced recipients. The system does not, however, propagate the rules to the record specified in the Acknowledgment Next GNS ID to Notify box. In the following example, the Acknowledgment settings will be propagated to all records in the AREA_1_OPERATORS record. If AREA_1_OPERATORS contains references to other records, the rules will be propagated to those records as well. The top-level resend rules take precedence over rules defined in a referenced record. If propagation is not active, the referenced record’s rules apply. Click the following image to see a propagation resend example configuration:
Report Alarm Clear	Click Report Alarm Clear to send a notification when an alarm clears. This property applies to all referenced recipients. It does not, however, apply to the record specified in the Acknowledgment Next GNS ID to Notify box. That record will not receive a notification when an alarm clears. Note: This check box must be enabled for the address recipient to receive a Clear message configured on the Messages page of the GNS record.
Ignore all previous resend rules	Click this setting to ignore all previous resend rules propagated to this notification. This allows the notification to reject any resend rules that might propagate down from the event, and to override those rules with its own resend rules.
Acknowledgment
Acknowledgment Required	Click Acknowledgment Required to indicate that this notification requires an acknowledgment. Each notification requiring acknowledgment is assigned an acknowledgment ID (Ack ID), which is sent as part of the notification and displayed in the GNS Queue. Any type of notification can require an acknowledgment, although the method of acknowledgment depends on the type of notification. See also Acknowledging Notifications for more information. Any type of notification can be acknowledged via the GNS Queue using CygNet Explorer. Additionally notifications can be acknowledged by sending an email or SMS back to the GNS. See Acknowledging Notifications Via Email for more information about this method of acknowledgment. If the notification type is a Voice Address notification, the recipient will have the option of acknowledging while on the line with the system. Other methods to acknowledge a Voice Address notification include: dialing in to the system and entering the acknowledgment ID (this requires that the host have a Dialogic board or a SIP Server), using CygNet Explorer and acknowledging the message in the GNS Queue, or sending an acknowledgment email. The GNS can be configured to append the response phone number to messages that require acknowledgment. Acknowledgment Required Settings If the configured recipient of the notification does not acknowledge the callout, the Acknowledgment Required settings tell the system how to handle the notification. The notification will be resent the number of times specified in the Retries if not acknowledged option, with a delay in minutes specified in the Minutes to wait between retries option. Once the number of retries is exhausted, if the configured recipient has still not acknowledged the callout, it will be sent to the GNS ID specified in the Next GNS ID to Notify field. Note: If Acknowledgment Required is checked, you must either set Retries to a number greater than zero or specify the Next to Notify recipient. These two items (Retries if not acknowledged and Next GNS ID to Notify) will put the notification in the Resend Queue. If the notification is acknowledged, then the message is removed from the Resend Queue because the expected action (acknowledgment) has been completed. If there are no Retries or Next to Notify values set, the notification is never placed on the Resend Queue because no further action is expected or required. Additionally, if there is no Next to Notify set and the last retry has occurred, the notification is removed from the Resend Queue, again because there is no further action to take. Acknowledging a notification removes all items with the same acknowledgment ID from the GNS Queue or the Resend Queue.
Next GNS ID to notify	Specifies the next GNS ID to send the notification to, once the retries are exhausted, if the recipient has not acknowledged the notification. Note: The Report Alarm Clear and Resend if not cleared options are not applicable to Next GNS ID to notify recipients.
Retries if not acknowledged	Specifies the number of times the notification will be resent if not acknowledged. The default value for Retries is 0.
Minutes to wait between retries	Specifies the number of minutes to delay before resending the notification. The default value for Minutes Between Retries is 0.
Resend
Resend if not cleared	Click Resend if not cleared to continue to resend the notification to a recipient as long as the alarm is set. This property applies to all referenced recipients. It does not, however, apply to the record specified in the Acknowledgment Next GNS ID to Notify box.
Resend time (minutes)	Specify the interval (in minutes) for the notification to continue to be sent.
Blackouts
Edit...	Click Edit... to configure a blackout period during which scheduled recipients are not sent notifications. See Configuring Blackouts for more information.
Delete	Click Delete to remove an existing blackout from an address record.
During blackout	Select one of the following options: During a blackout the notification will be handled in the following manner: Delete notification — select to delete the notification during the blackout. Resend after blackout — select to resend the notification after the blackout period expires, even if the alarm condition no longer persists. Resend after blackout if condition persists — select to resend the notification after the blackout period expires, only if the alarm condition persists. Forward notification to next GNS ID — select to explicitly forward the notification to the next GNS ID record to notify (if Acknowledgment is required) during a blackout period. The selected option applies to all blackouts assigned to the selected notification recipient.

Property

Description

Type

The type of notification for this recipient. See Notification Address Types for more information about each type.

Address

Specifies the address applicable to the notification type. See Notification Type Address Formats below.

Description

Specifies an optional description for the recipient.

Numeric Delay

Specify the number of delays to include in the dial command line. The number of delays translates to a dial modifier (,), which causes the modem to pause after dialing.

Example

For a pager address of 555124, a Numeric Delay of 2, and a numeric message of 41, the resulting ATDT line looks like this:

ATDT 5551234,,41

causing the modem to pause twice after dialing the pager address. The pause length is determined by a register setting on the modem, usually two seconds per comma.

Note: Numeric Delay applies only to Numeric Pager (PG) notification type.

Propagate resend rules down

Propagate resend rules down applies only to Reference Address recipients in Event and Group records. If this option is enabled, the Acknowledgment, Resend, and Blackout settings are propagated to all referenced recipients. The system does not, however, propagate the rules to the record specified in the Acknowledgment Next GNS ID to Notify box.

In the following example, the Acknowledgment settings will be propagated to all records in the AREA_1_OPERATORS record. If AREA_1_OPERATORS contains references to other records, the rules will be propagated to those records as well.

The top-level resend rules take precedence over rules defined in a referenced record. If propagation is not active, the referenced record’s rules apply.

Click the following image to see a propagation resend example configuration:

Report Alarm Clear

Click Report Alarm Clear to send a notification when an alarm clears. This property applies to all referenced recipients. It does not, however, apply to the record specified in the Acknowledgment Next GNS ID to Notify box. That record will not receive a notification when an alarm clears.

Note: This check box must be enabled for the address recipient to receive a Clear message configured on the Messages page of the GNS record.

Ignore all previous resend rules

Click this setting to ignore all previous resend rules propagated to this notification. This allows the notification to reject any resend rules that might propagate down from the event, and to override those rules with its own resend rules.

Acknowledgment

Acknowledgment Required

Click Acknowledgment Required to indicate that this notification requires an acknowledgment. Each notification requiring acknowledgment is assigned an acknowledgment ID (Ack ID), which is sent as part of the notification and displayed in the GNS Queue.

Any type of notification can require an acknowledgment, although the method of acknowledgment depends on the type of notification. See also Acknowledging Notifications for more information.

Any type of notification can be acknowledged via the GNS Queue using CygNet Explorer. Additionally notifications can be acknowledged by sending an email or SMS back to the GNS. See Acknowledging Notifications Via Email for more information about this method of acknowledgment.

If the notification type is a Voice Address notification, the recipient will have the option of acknowledging while on the line with the system. Other methods to acknowledge a Voice Address notification include: dialing in to the system and entering the acknowledgment ID (this requires that the host have a Dialogic board or a SIP Server), using CygNet Explorer and acknowledging the message in the GNS Queue, or sending an acknowledgment email. The GNS can be configured to append the response phone number to messages that require acknowledgment.

Acknowledgment Required Settings

If the configured recipient of the notification does not acknowledge the callout, the Acknowledgment Required settings tell the system how to handle the notification.

The notification will be resent the number of times specified in the Retries if not acknowledged option, with a delay in minutes specified in the Minutes to wait between retries option. Once the number of retries is exhausted, if the configured recipient has still not acknowledged the callout, it will be sent to the GNS ID specified in the Next GNS ID to Notify field.

Note: If Acknowledgment Required is checked, you must either set Retries to a number greater than zero or specify the Next to Notify recipient.

These two items (Retries if not acknowledged and Next GNS ID to Notify) will put the notification in the Resend Queue. If the notification is acknowledged, then the message is removed from the Resend Queue because the expected action (acknowledgment) has been completed. If there are no Retries or Next to Notify values set, the notification is never placed on the Resend Queue because no further action is expected or required. Additionally, if there is no Next to Notify set and the last retry has occurred, the notification is removed from the Resend Queue, again because there is no further action to take.

Acknowledging a notification removes all items with the same acknowledgment ID from the GNS Queue or the Resend Queue.

Next GNS ID to notify

Specifies the next GNS ID to send the notification to, once the retries are exhausted, if the recipient has not acknowledged the notification.

Note: The Report Alarm Clear and Resend if not cleared options are not applicable to Next GNS ID to notify recipients.

Retries if not acknowledged

Specifies the number of times the notification will be resent if not acknowledged. The default value for Retries is 0.

Minutes to wait between retries

Specifies the number of minutes to delay before resending the notification. The default value for Minutes Between Retries is 0.

Resend

Resend if not cleared

Click Resend if not cleared to continue to resend the notification to a recipient as long as the alarm is set. This property applies to all referenced recipients. It does not, however, apply to the record specified in the Acknowledgment Next GNS ID to Notify box.

Resend time (minutes)

Specify the interval (in minutes) for the notification to continue to be sent.

Blackouts

Edit...

Click Edit... to configure a blackout period during which scheduled recipients are not sent notifications. See Configuring Blackouts for more information.

Delete

Click Delete to remove an existing blackout from an address record.

During blackout

Select one of the following options:

During a blackout the notification will be handled in the following manner:

Delete notification — select to delete the notification during the blackout.
Resend after blackout — select to resend the notification after the blackout period expires, even if the alarm condition no longer persists.
Resend after blackout if condition persists — select to resend the notification after the blackout period expires, only if the alarm condition persists.
Forward notification to next GNS ID — select to explicitly forward the notification to the next GNS ID record to notify (if Acknowledgment is required) during a blackout period.

The selected option applies to all blackouts assigned to the selected notification recipient.

Notification Type Address Formats

Notification Type	Address Format	Example	Notes
Alphanumeric Page	PIN or PIN@ModemNumber	123-4567 123-4567@1-800-555-1212	Use the PIN format if the modem number is configured in the GNS configuration file. Use the PIN@ModemNumber if you are not sure. See the note below table.
COM Port Address	COM port number	COM1
Net Send	IP Address or Machine Name	192.164.1.202 FT1278W2K	Machine name is case sensitive. Note: Net Send does not work on Windows Vista or later.
*<Notification Plugin Type Name>	Depends on the requirements of the third-party plugin, for example, email address, phone number, or a short list of number or letters, etc.	user.name@acme.com 1-800-555-1212 Regular Expression: ^(\+\d{1,2}\s)?\(?\d{3}\)?[\s.-]\d{3}[\s.-]\d{4}$	Configure the email address, phone number, or regular expression to whatever the plugin is expecting. See CygNet Notification Plugin Interface for more information.
Numeric Page	Pager number	1-800-555-1212	See the note below table.
Reference Address	ID of GNS record	OPERATORS	Click … to browse to select a GNS ID to use as the reference address.
SMTP Mail	Valid email address	user.name@Acme.com	Can include SMS message sent via email to an SMS gateway address, for example, 8051234567@txt.att.net, 8059876543@vtext.com
SNPP Message	Cell phone number or pager number	1-800-555-1212
Voice Address	Telephone number	1-800-123-4567	See the note below table.
WAV Address	Telephone number	555-1212	See the note below table.

Notification Type

Address Format

Example

Notes

Alphanumeric Page

PIN or PIN@ModemNumber

123-4567

123-4567@1-800-555-1212

Use the PIN format if the modem number is configured in the GNS configuration file.

Use the PIN@ModemNumber if you are not sure.

See the note below table.

COM Port Address

COM port number

COM1

Net Send

IP Address or Machine Name

192.164.1.202

FT1278W2K

Machine name is case sensitive.

Note: Net Send does not work on Windows Vista or later.

*<Notification Plugin Type Name>

Depends on the requirements of the third-party plugin, for example, email address, phone number, or a short list of number or letters, etc.

user.name@acme.com

1-800-555-1212

Regular Expression: ^(\+\d{1,2}\s)?$?\d{3}$?[\s.-]\d{3}[\s.-]\d{4}$

Configure the email address, phone number, or regular expression to whatever the plugin is expecting.

See CygNet Notification Plugin Interface for more information.

Numeric Page

Pager number

1-800-555-1212

See the note below table.

Reference Address

ID of GNS record

OPERATORS

Click … to browse to select a GNS ID to use as the reference address.

SMTP Mail

Valid email address

user.name@Acme.com

Can include SMS message sent via email to an SMS gateway address, for example, 8051234567@txt.att.net, 8059876543@vtext.com

SNPP Message

Cell phone number or pager number

1-800-555-1212

Voice Address

Telephone number

1-800-123-4567

See the note below table.

WAV Address

Telephone number

555-1212

See the note below table.

Note: Dashes — The dashes in paging, voice, and WAV addresses are for visual clarity only and are not required. The addresses can include digits for obtaining an outside line and commas for a pause (a comma is a one-second pause). For example, 9,, 1-800-555-1212. This address dials 9 for an outside line, pauses for two seconds, and then dials the number.
