Including Other Points in Notifications

It is possible to include other points (for instance, data values or descriptive information) in a notification message using reference point token substitution. A single point value in a notification may not always provide sufficient detail to analyze a problem. By adding current value information for points other than the point that triggered the notification, it is possible to add more context to your notification messages.

Example

Plant pressure puts a point into alarm, generating a notification, but you would also like to view the device's flow rates in the resulting notification message. The values for the other points (flow rates) can provide valuable information allowing you to troubleshoot the initial alarm more quickly.

You can include a reference point token in a notification that resolves to another point in the same CVS, or to another point in a different CVS. Implicit (meaning the same facility as the point triggering the alarm), relative, and absolute facility references are supported. A fully qualified facility reference tag is required for a facility in another CVS.

Regular text tokens can be used within the reference point token.

Reference Point Token Syntax

The reference point token is color-coded to assist with readability, but the colors do not appear in the notification message. The reference point token uses the following syntax elements:

% < { } > value [ ] % %% %units%

Example

%<CYGSITE3.UIS::{facility_id = 'STATION_A'}.%udc%>value[DateTime]%%%%units%

which corresponds to the following:

Token Delimiter

Percent signs % % enclose the whole reference point token.

Point String

Angle brackets < > indicate to use the point defined by the string enclosed within the brackets. A full SITE SERVICE FACILITY UDC tag format can be inside the brackets, but it builds up from the reverse:

<UDC>

<FACILITY.UDC>

<SERVICE::FACILITY.UDC>

<SITE.SERVICE::FACILITY.UDC>

Example

<PDIFF>

<EMERSON800L.PDIFF>

<UIS::EMERSON800L.PDIFF>

<CYGSITE1.UIS::EMERSON800L.PDIFF>

Other possible variant formats include:

<FACILITY.>

<SITE.::FACILITY.UDC>

<SITE.::.UDC>

<SITE.SERVICE::.UDC>

Example

<EMERSON800L.>

<CYGSITE1.::EMERSON800L.PDIFF>

<CYGSITE1.::.PDIFF>

<CYGSITE1.UIS::.PDIFF>

Ambient Value

If any part of the string is unspecified (left blank), this indicates a shortcut meaning "use the ambient value for that field," where ambient is defined as inherited from the active notification’s point.

FACILITY is special case, in that if it resolves to a facility tag (either through direct property lookup or by rule filter functionality), it overrides the ambient site, service, and facility ID.

Facility Rule

Curly brackets { } indicate to perform a query to find a facility tag that matches the attributes enclosed within the brackets. The query syntax supports all filter functionality (except for names and enabled/disabled status).

See To Set Facility Rules below.

Value

value indicates to look up the point's value resulting from the contents of the point string (within the angle brackets) and/or the results of the facility rule (query within the curly brackets).

Formatting

Square brackets [ ] indicate any special display formatting to be used for the value.

Escape Character

%% indicates that you can include an escaped percent sign in your reference point token.

Text Token

%units% shows that you can include other text tokens adjacent to the reference point token.

Source and Reference Attributes

Within the reference point token (and the facility rule), each Source Attribute is surrounded by percent signs % % to indicate that the attribute comes from the point triggering the notification. Each Reference Attribute is shown without a wrapper to indicate that the attribute is externally sourced.

Building Up a Reference Point Token

The following steps describe how to build up a Reference Tag for a point other than the active notification's point. The final format of the reference tag will be of the format described above. If any part of the tag is unspecified, it will be assumed to be ambient, or inherited from the source point.

To Create a Reference Tag

Insert a token into the Edit Text field.
Click anywhere inside the token and click Reference Tag to view the Reference Tag dialog box.

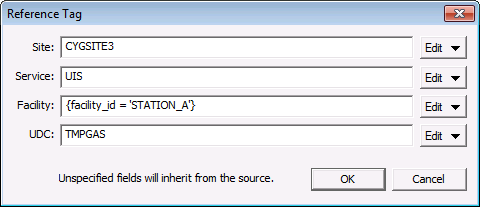

Reference Tag

Type a Site name, or click Edit to select a

Site from the Select Site dialog box, or a
Source Attribute from the Select Source Attribute dialog box.

Type a Service name, or click Edit to select a

Service from the Select Service dialog box, or a
Source Attribute from the Select Source Attribute dialog box, or a
Site.Service from the Select Service dialog box. Note that you can use this option to choose both a Site and a Service with a single click.

Type a Facility name, or click Edit to select a

Facility from the Select Facility dialog box, or a
Source Attribute from the Select Source Attribute dialog box, or
specify a Facility Rule Filter (see below) on the Set Facility Rules dialog box, or
select a Facility Tag from the Select Facility dialog box. Note that you can use this option to populate or overwrite the Site and Service fields, in addition to choosing a Facility Tag.

Type a UDC , or click Edit to select a

UDC from the Select UDC dialog box, or a
Source Attribute from the Select Source Attribute dialog box, or a
Point from the Select Point dialog box. Note that you can use this option to set all four fields.

Click OK to insert the tag into the token chooser dialog box.
Click OK to save the token string to the Messages page of the Notifications Properties dialog box.

To Set Facility Rules

The facility tag portion of the reference tag can be specified using a filtered rule to perform a query against a facility attribute. See Using CygNet Filter Rules for a general discussion of CygNet filter rules.

Click Edit next to the Facility text box in the Reference Tag dialog box.
Select Specify Facility Rule Filter to view the Set Facility Rules dialog box.

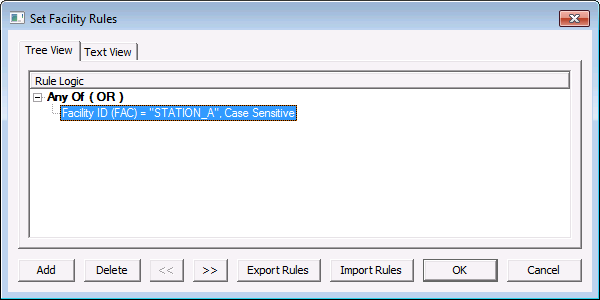

Set Facility Rules

Click Add to create a new facility rule.
Define the rule as desired by indicating the Facility Attribute, Operator, Qualifier, Comparison Type, and Comparison Item. See Adding Filter Rule Definitions for more information about these fields.

The three Comparison Types available in this context include:

Reference Attribute — Any system-defined reference facility attribute. Select the attribute in the Comparison Item field.
Source Attribute — Any system-defined source attribute. Select the attribute in the Comparison Item field.
User Value — Any user-defined value that you’d want to display or compare against. Type the actual value in the Comparison Item field.

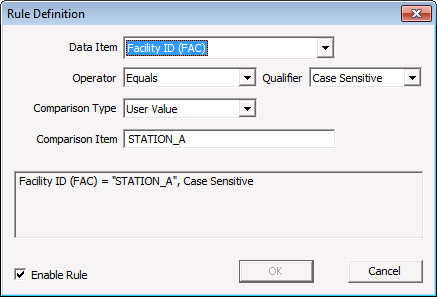

Rule Definition

Click to enable the rule.
Click OK to save the rule definition.
Repeat steps 3. and 4. to define a compound rule, if necessary. Define compound rule properties (AND, OR, NOT) by double-clicking on the root rule.
Optionally, give the rule a Name by double-clicking on the root rule on the Set Facility Rules dialog box. Note that only the root rule can be named. This is useful if you plan to reference this rule in another rule in the same expression. See Reference Name for Rules below.
Click OK to add the facility rule to the reference tag.
Click OK to save the reference tag to the notification message.

Facility Rule Examples

The following table gives several facility rule examples:

Rule	Meaning
{facility_attr10 = 'TANK'}	This query creates a rule whose attribute is Facility Attribute 10, doing a case-sensitive string equality comparison to the User Value of TANK.
{facility_attr10 = facility_attr9}	This query creates a rule whose attribute is Facility Attribute 10, doing a case-sensitive string equality comparison to the Reference Attribute of Facility Attribute 9. Note that reference attributes are self-relative in this example.
{facility_attr10 = %facility_attr9%}	This query creates a rule whose attribute is Facility Attribute 10, doing a case-sensitive string equality comparison to the "locally sourced reference attribute" of Facility Attribute 9. In this case, %facility_attr9% comes from the object's primary point or the point triggering the notification, depending on usage.
{not (facility_site = facility_id)}	This query creates a rule that would return the first facility where the facility site does not equal the facility ID. It is equivalent to {facility_site <> facility_id}, but is more useful in cases like the second one where you have a larger expression to negate.
{facility_attr20 = %facility_tag% OR (facility_type = %facility_type%) AND (facility_attr21 = %facility_attr20%)}	This query is equivalent to {Facility Attribute 20 equals source Facility Tag OR (Facility Type equals source Facility Type) AND (Facility Attribute 21 equals source Facility Attribute 20)}. See Truth Table below.
{not (facility_service = facility_service OR facility_site = facility_site AND facility_id = facility_id)}	The inner expression would return all facility IDs where the facility_service equals the facility_service OR where both the facility_site equals the facility_site and facility_id equals the facility_id. This query would return the negative case for the inner expression. See Truth Table below.
{(facility_service = facility_service OR facility_site = facility_site) AND facility_id = facility_id}	This query is similar to the previous one, but the parentheses change the precedence of OR vs. AND. In this example, either the facility_service equals the facility_service or the facility_site equals the facility_site AND where the facility_id equals the facility_id. See Truth Table below.
{facility_service = ToCaseInsensitive('MYSITE')}	This query changes the default comparison qualifier from a case-sensitive string to a case-insensitive string.
{facility_service = '10'}	This query changes the default comparison qualifier from a case-sensitive string to an integer.
{facility_service = ToInteger('10')}	This query changes the default comparison qualifier from a case-sensitive string to an integer.
{facility_service = ToReal('10.1')}	This query changes the default comparison qualifier from a case-sensitive string to a real number.
{facility_service = ToDate('2010-12-20 11:30')}	This query changes the default comparison qualifier from a case-sensitive string to a timestamp.

Note: The content of the parentheses for ToCaseInsensitive, ToInteger, ToReal, and ToDate can be a numeric or string literal (as above), an attribute name, or an external source attribute name.

Truth Table

The following truth table may help you write Boolean queries.

Boolean or Boolean and Boolean

False or False and False = False

False or False and True = False

False or True and False = False

False or True and True = True

True or False and False = True

True or False and True = True

True or True and False = True

True or True and True = True

Note: The surrounding "not" just makes it so that the first three are true and the last five are false.

(Boolean or Boolean) and Boolean

(False or False) and False = False

(False or False) and True = False

(False or True) and False = False

(False or True) and True = True

(True or False) and False = False

(True or False) and True = True

(True or True) and False = False

(True or True) and True = True

Note: Parentheses work "as expected" (similar to most programming languages and SQL). Similar to addition and multiplication, "OR" has lower precedence than "AND." Parentheses allow you to adjust that precedence.

Reference Names for Rules

Rules can be configured with a Name, which can be referenced elsewhere in the expression. This is to avoid defining complex rules more than once in the same expression.

Note: Only a root rule can be named; it is configured on the Compound Rule Properties dialog box; the "refname =" must be typed manually into your token.

Named and referenced rules take the following format:

Example 1

%<{name = 'BOB' : facility_id = 'MARY' }.>value% is %<{refname = 'BOB' }.>units%

where

The first rule defines a rule named 'BOB' which is equivalent to "get a facility tag where the facility_id is equal to 'MARY.'

The second rule says "find the rule named 'BOB' and use it here."

Example 2

The following expression is also allowed. A reference name (refname) can be used before it is defined (name).

%<{refname = 'BOB' }.>value% is %<{name = 'BOB' : facility_id = 'MARY' }.>units%

Reference Point Token Examples

The following examples will help you understand how to format your tokens.

Token	Meaning
%<DP>value%	Replace the UDC with "DP." Look up that resulting point’s value.
%<%facility_attr9%.LEVEL>value%	Look up the value of my Facility Attribute 9, and use that to replace the Facility. Replace the UDC with "LEVEL." Look up that resulting point’s value. However, depending on what %facility_attr9% resolves to, this could also mean: Look up the value of my Facility Attribute 9, and use that to replace the SITE, SERVICE, and FACILITY. Replace the UDC with "LEVEL." Look up that resulting point’s value.
%<{facility_attr10 = %facility_tag% AND facility_type = 'TANK'}.LEVEL>value%	Find the first facility tag whose Facility Attribute 10 equals my facility_tag and whose facility type is "TANK." Use that as the facility tag to look up, and use "LEVEL" as the UDC. Look up that resulting point’s value.
%<HSS::{facility_attr10 = %facility_tag% AND facility_type = 'TANK'}.LEVEL>value%	Find the first facility tag whose Facility Attribute 10 equals my facility_tag and whose facility type is "TANK." Use that as the facility tag to look up, but first replace the service with "HSS," and use "LEVEL" as the UDC. Look up that resulting point’s value.
%<%site%.%service%::{facility_attr10 = %facility_tag% AND facility_type = 'TANK'}.LEVEL>value%	Find the first facility tag whose Facility Attribute 10 equals my facility_tag and whose facility type is "TANK." Use that as the facility tag to look up, but replace the site and service with my site and service, and use "LEVEL" as the UDC. Look up that resulting point’s value. Note: This example demonstrates that the ambient site and service remains that of the active notification's point.

Error Messages

If the reference tag cannot resolve to a valid point, an invalid tag error message will be displayed in the notification message. Possible error messages are shown in the following table:

Error Message	Displays If
<invalid reference tag, invalid rule>	The rule could not be parsed correctly (or if the refname could not be found).
<invalid reference tag, failed FAC name lookup for SITE.SERVICE>	The GNS could not get the facility service from the CVS.
<invalid reference tag, no facility matched>	The query did not resolve to any facilities.
<invalid reference tag, SOME_ERROR_MESSAGE>	The tag could not be resolved and the message displays an appropriate error code (for example, -9: "The CygNet service 'MYSITE.FAC' is not in service" or -14: "No reply received from CygNet service MYSITE.FAC", etc.)
<invalid reference tag, invalid tag>	The resolved tag produced an invalid tag. For example, if you have something like: %<%general1%>value%. On a SVCMON, %general1% is a Site.Service (most often). As a Site.Service is not a valid UDC, that won’t be able to be retrieved, and will result in the invalid tag error.
<invalid reference tag, failed to get data for RESOLVED_TAG>	The point wasn’t found on the CVS (or the CVS was not running).
