Relative Facility Definition Examples

The following diagrams demonstrate various relative facility definitions and concepts.

Keep the following in mind:

• When configuring a relative facility definition, specify a facility attribute for the linked facility
• All links must resolve to a single facility
• Multiple links from a single facility/definition are not supported
• Multiple hops are supported

Simple Relative Facility Definition

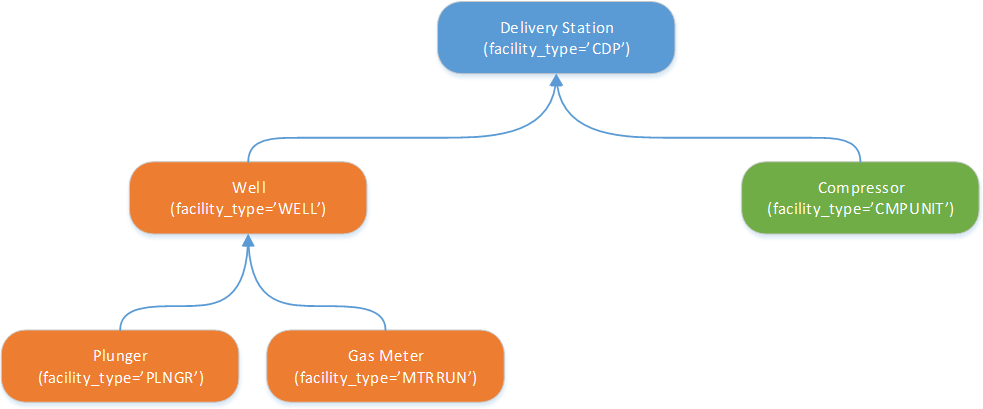

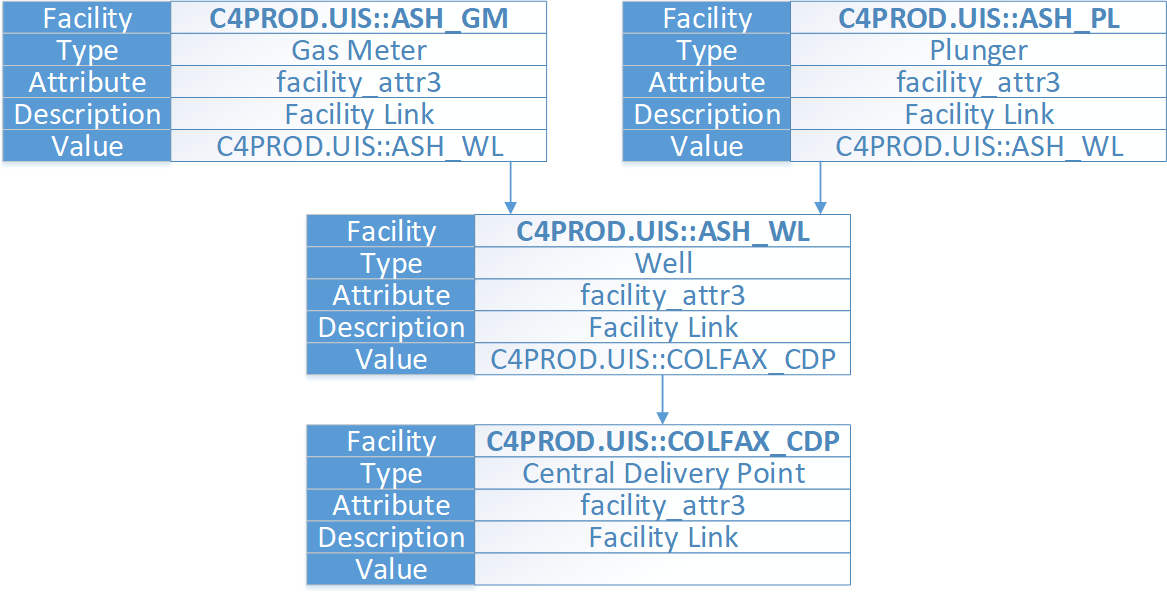

The following example shows a simple definition and its corresponding data model.

Relative Facility Definition with Order in Type

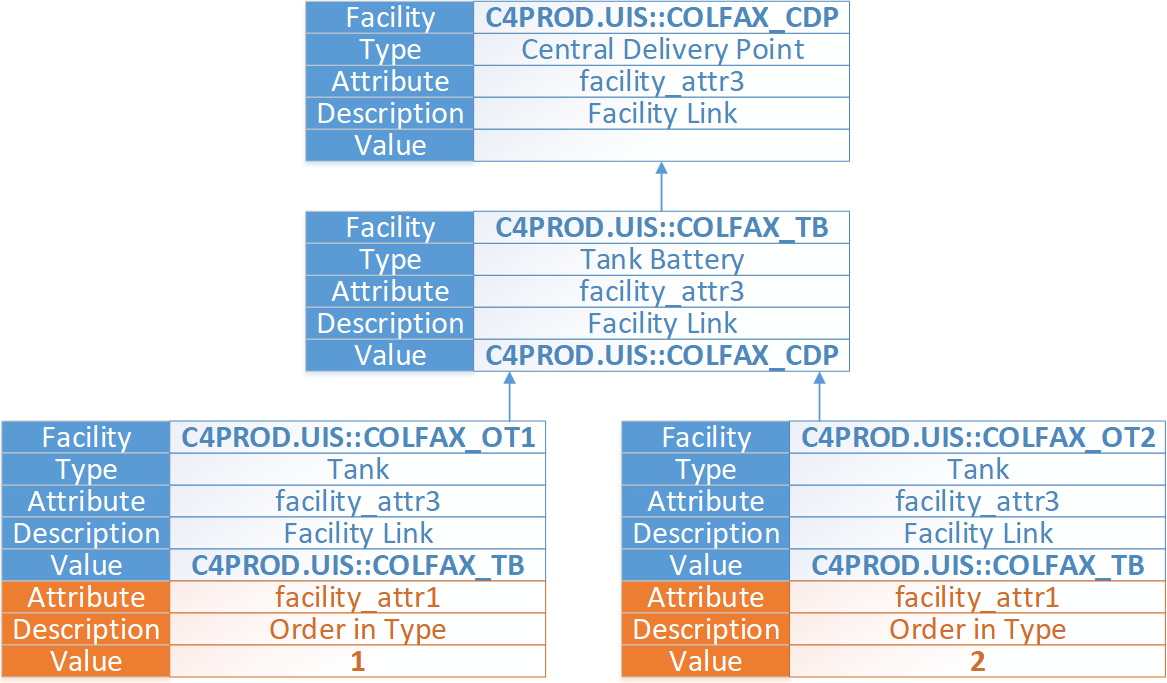

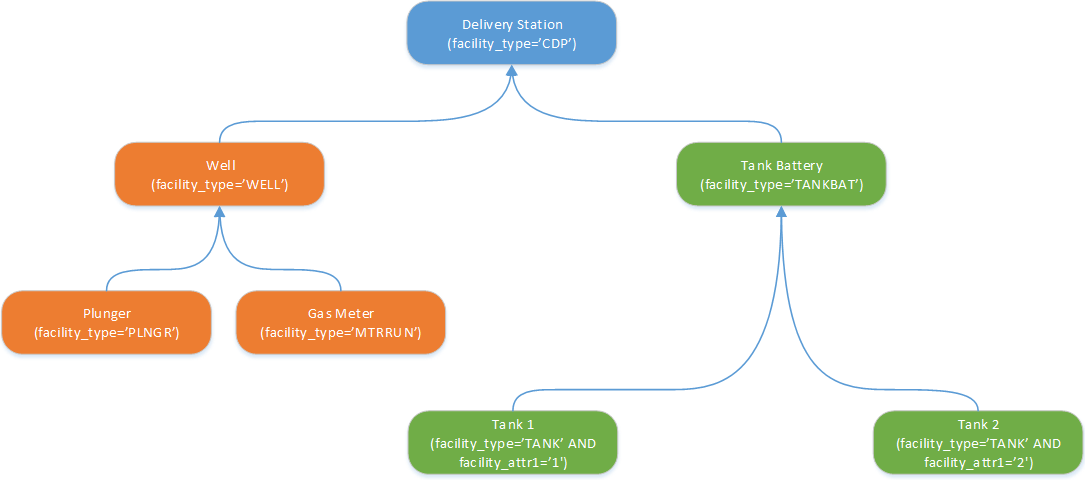

The following example shows an order-in-type-based definition for a facility (Tank Battery) with two child facilities (Tank 1 and Tank 2) and its corresponding data model.

Complex Relative Facility Definition

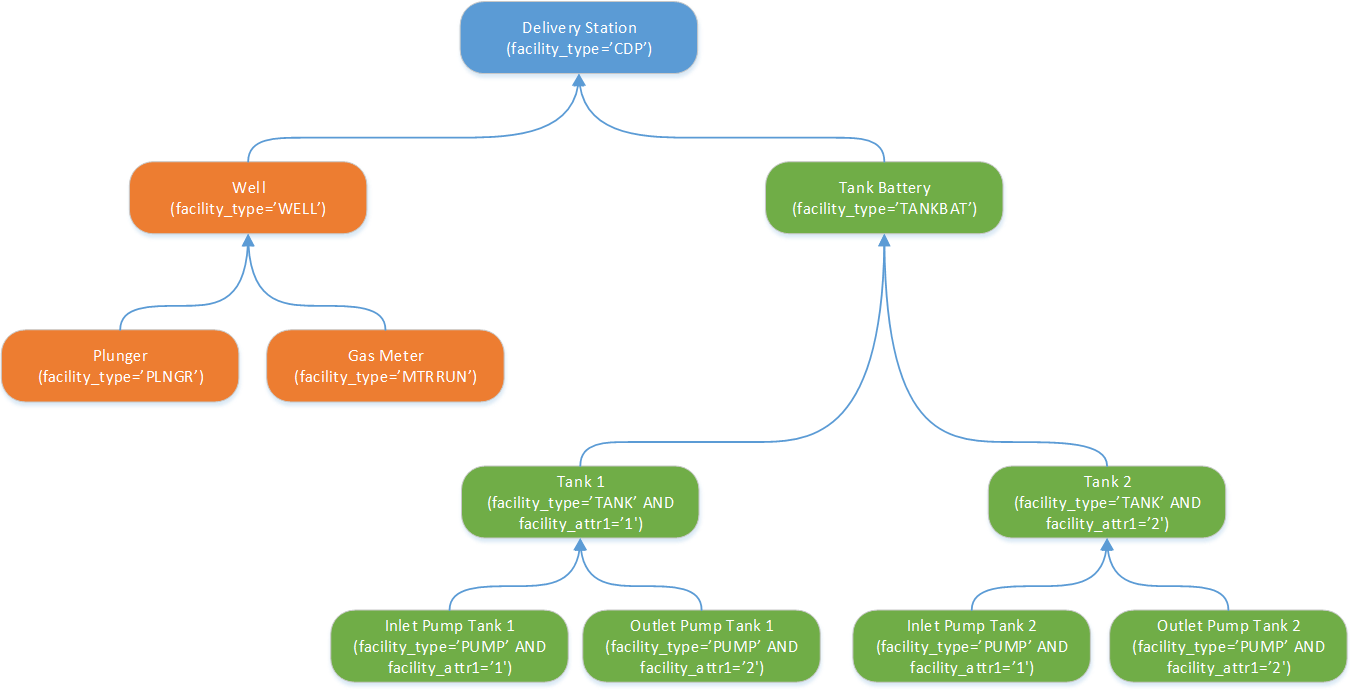

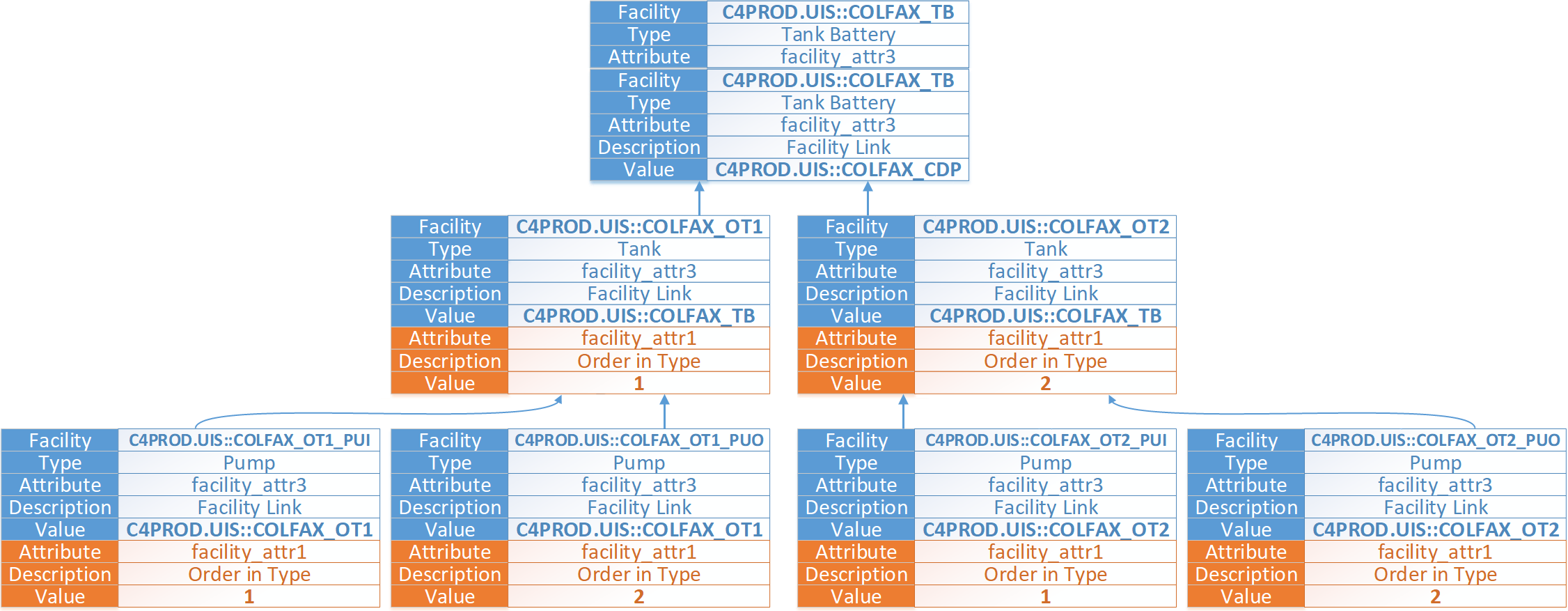

The following example shows a complex order-in-type-based definition and its corresponding data model.
