Maintenance Alarm Query Screen

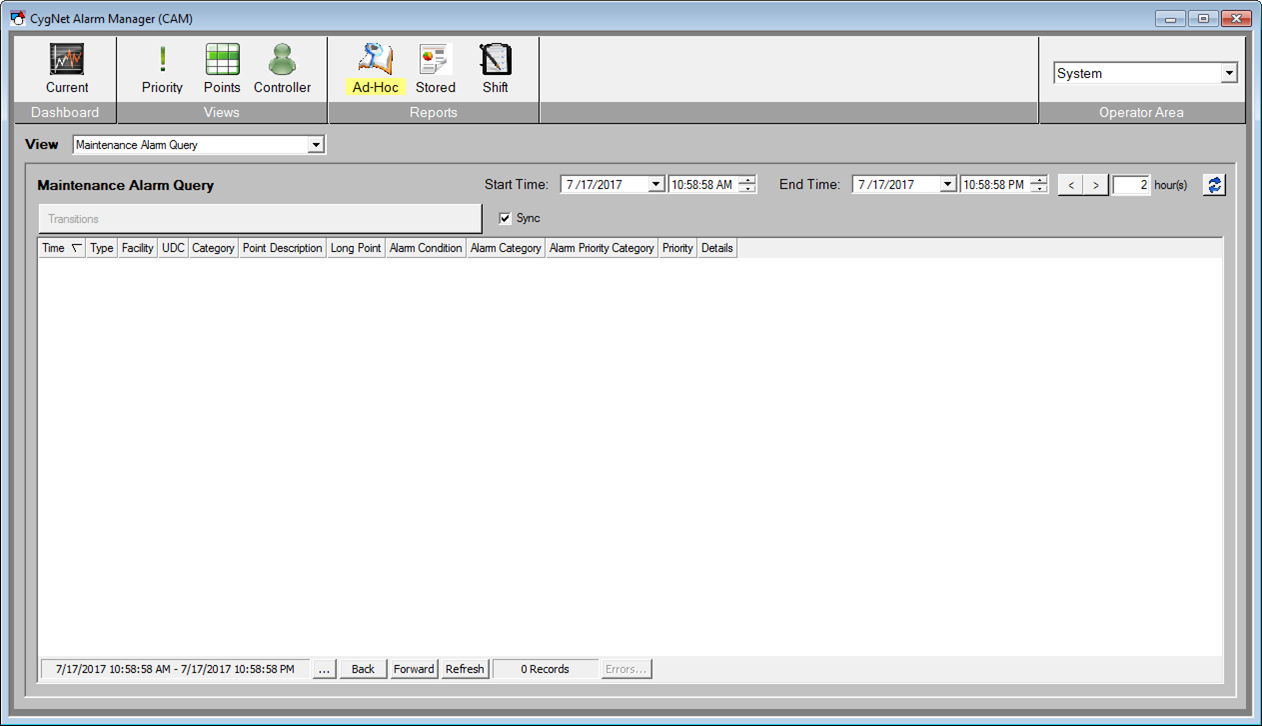

The Maintenance Alarm Query screen (CRM AQ - Maintenance Query.csf) is used to display those points that were placed into maintenance mode in the date range specified.
|
Click the thumbnail to see |
There is no default for what maintenance mode means in CygNet and as such one must be defined. A CygNet Point has User Flags that can be used for this purpose for example.
The Alarms section of the screen uses a CygNet Event Summary Control and its configuration is populated at runtime.

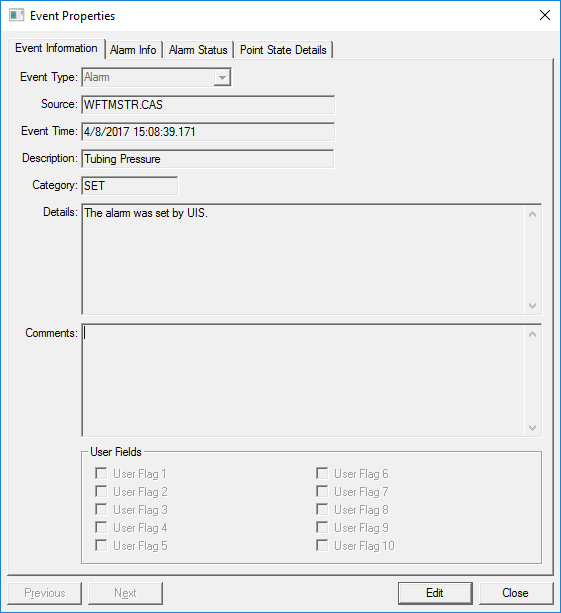

When an event in the Alarms list is double-clicked, the standard CygNet Event Properties dialog box is displayed and can be used for additional information about the individual event.
|
Event Properties dialog box |
When an event (or point) is selected in the list, the View Transitions button will be enabled and display the associated point to that particular Alarm.
|
View Transitions button |
Select View Transitions to open the Point Transition Detail screen for more detailed information about the particular point. This screen shows not only the "SET" alarms, but "RESETS", "ACKS", and other states.
If the Sync check box
is selected and the Point Transition Detail screen is opened, when a new Alarm is selected in the KPI Detail screen and represents a new point, then that new point will be displayed in the Point Transition Detail screen.
