Manage by Priority View Screen

The Manage by Priority View screen (CRM Priority Mgmt.csf) is used to show alarms for the Selected Priority for the date range specified.

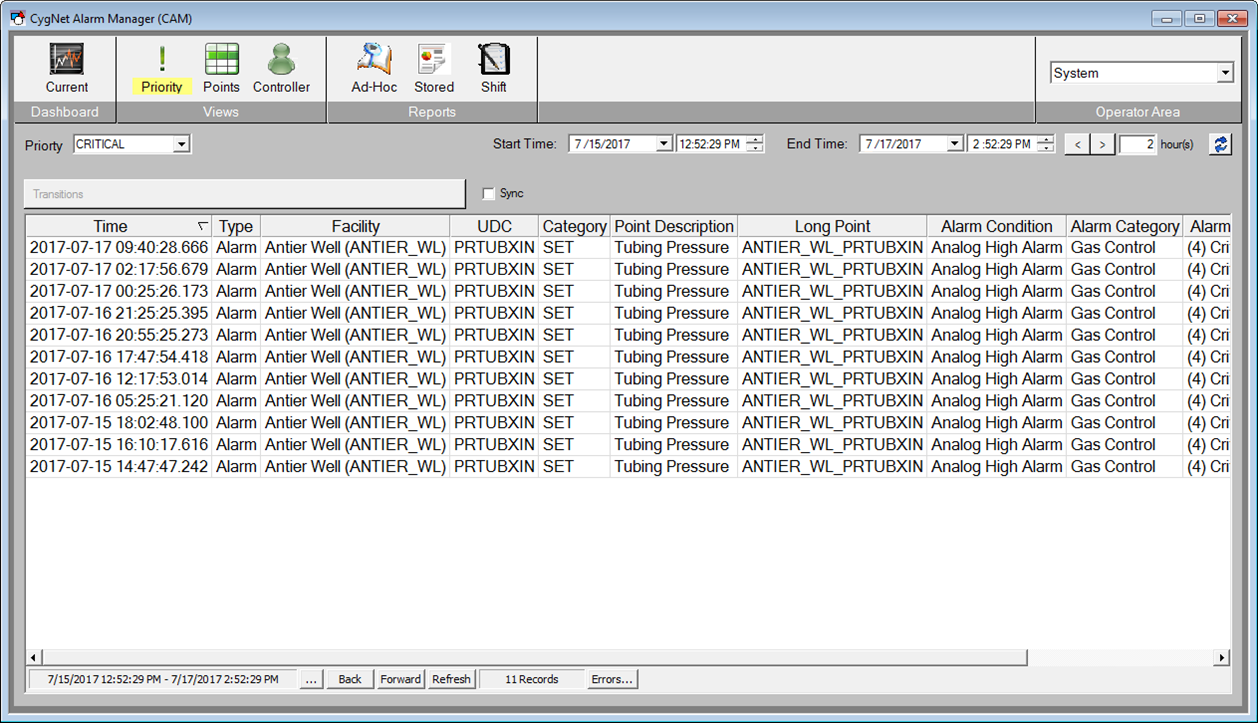

Click the thumbnail to see a Manage by Priority View Screen

The Alarms section of the screen uses the a CygNet Event Summary Control and its configuration is populated at runtime.

When an event in the Alarms list is double-clicked, the standard CygNet Event Properties dialog box is displayed and can be used for additional information about the individual event.

Event Properties dialog box

When an event (or point) is selected in the list, the View Transitions button will be enabled and display the associated point to that particular Alarm.

View Transitions button

Select View Transitions to open the Point Transition Detail screen for more detailed information about the particular point. This screen shows not only the "SET" alarms, but "RESETS", "ACKS", and other states.

If the Sync check box is selected and the Point Transition Detail screen is opened, when a new Alarm is selected in the KPI Detail screen and represents a new point, then that new point will be displayed in the Point Transition Detail screen.
